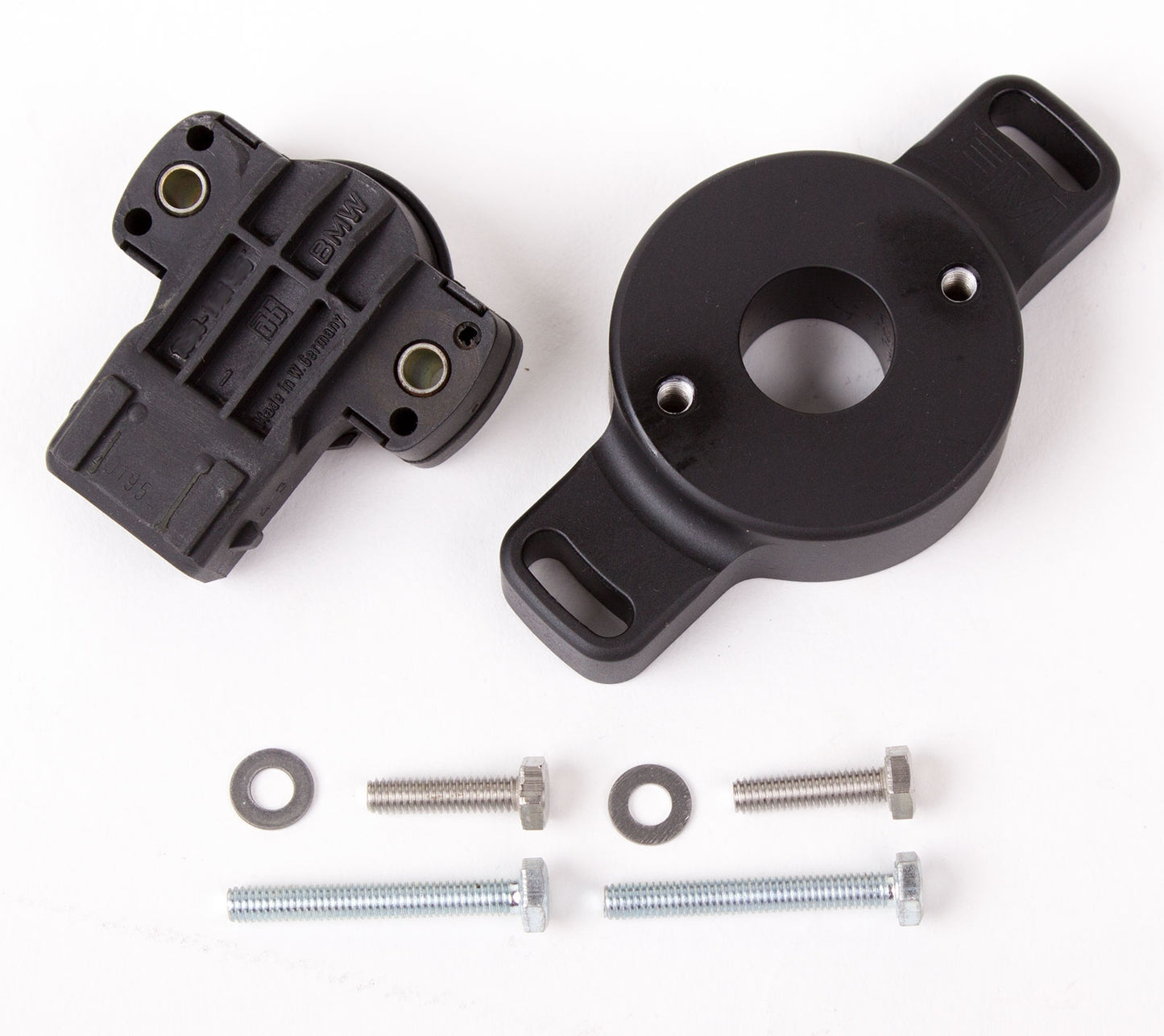

TPS upgrade kit for NA6

TPS upgrade kit for NA6

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Option 1
View full details

Collapsible content

Description

The stock throttle position sensor on the original 1990-93 1.6 cars - the NA6 - that came equipped with a manual transmission is a very simple device. It's really just two switches, one for idle and one for wide open throttle. That's not a lot of information.

More modern ECUs prefer actual throttle position information. We recommend an upgraded TPS for both the Hydra Nemesis and the FM221. This allows the ECU to give better idle control and respond better to very light throttle inputs, as well as faster response to throttle changes throughout the range. Basically, it works better!

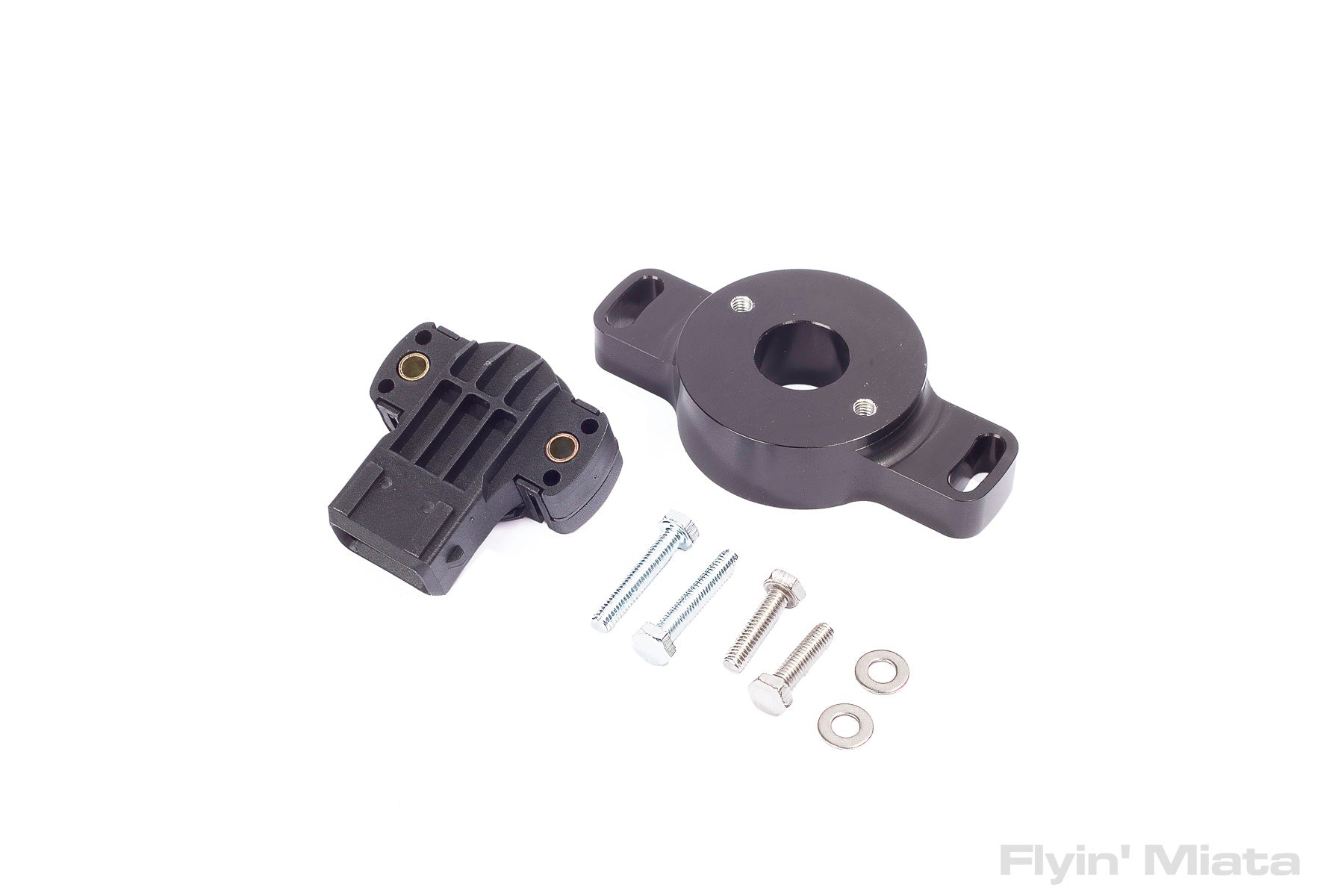

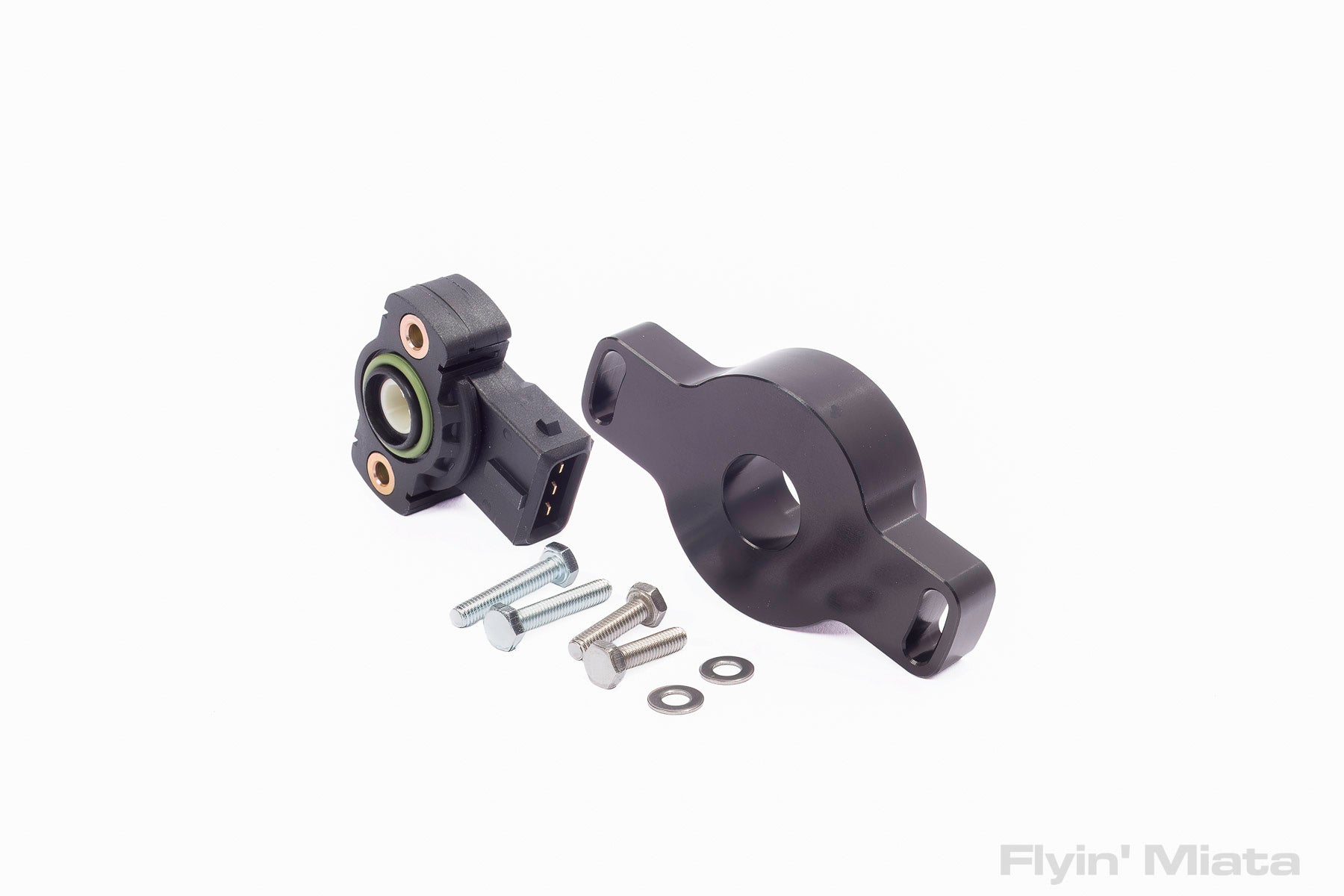

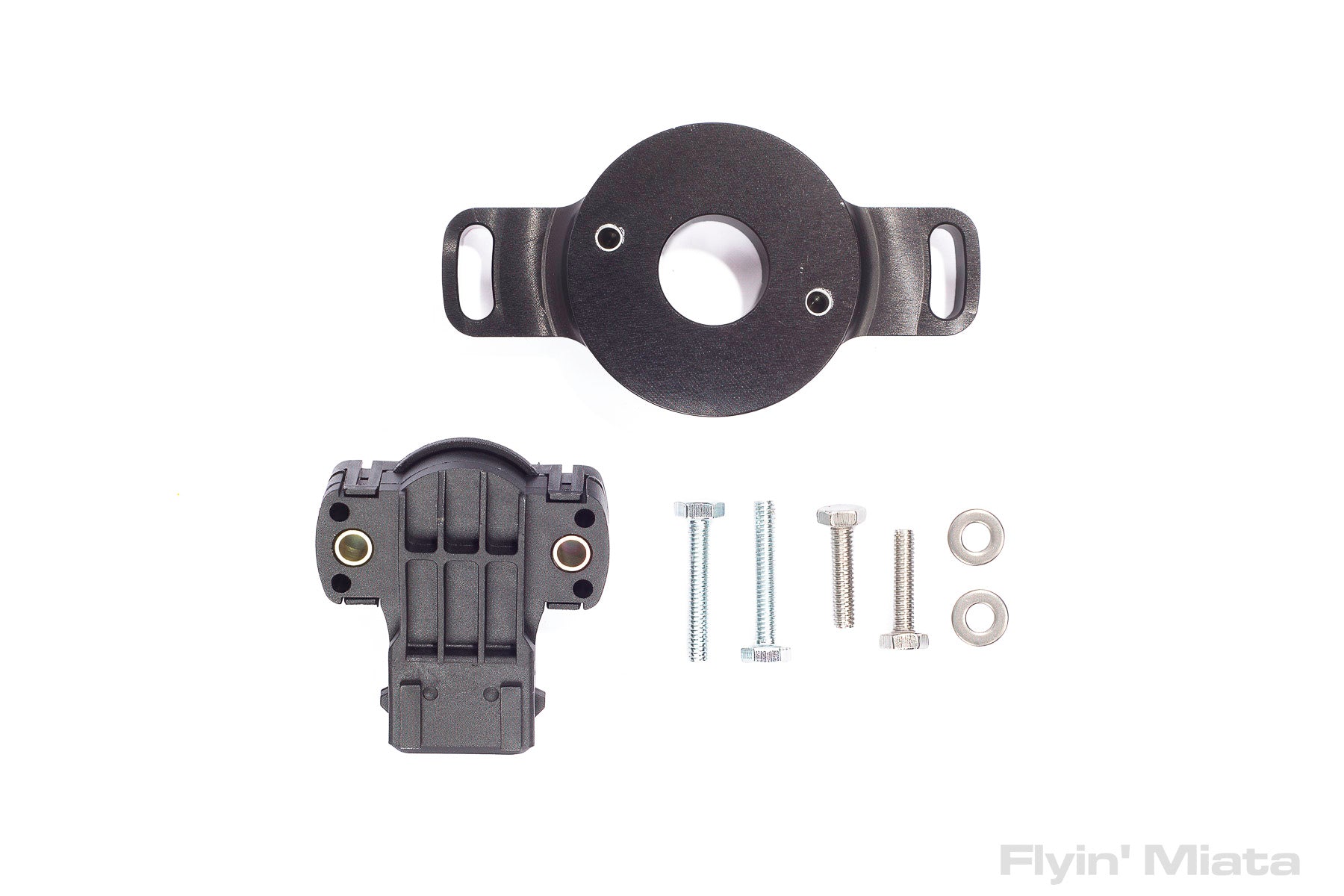

This is a bolt-on TPS upgrade that's exclusive to Flyin' Miata. The new TPS plugs straight into the stock wiring harness, and the FM adapter bolts to the side of the throttle body. It couldn't be easier. The FM 221 has all the necessary wiring on board. Other ECUs such as Megasquirt may need wiring changes between the ECU & the TPS plug for correct operation. (see instructions).

For use with all aftermarket ECUs that allow for a 0-5v linear TPS signal. Not for use with the simple stock ECU.

The basic kit does not include a TPS. We offer a genuine BMW TPS as an option, or you can supply your own. We've found the non-OE knockoffs to be of questionable reliability, so that's your call. You need BMW part 13-63-1-721-456 or equivalent.

Does not fit with an NB intake manifold. In that case we recommend you use a factory NB throttle body and TPS. Some supercharger setups that move the throttle body to a different location in the engine bay may also experience fitment issues. Not necessary for NA6 Miatas with automatic transmissions as those cars came equipped with a linear TPS from the factory.

Instructions

Shipping

Ships free in the US.
Details

There are no shipping restrictions on this item.

What does it fit?

Fits: 1990, 1991, 1992, 1993

Emissions

Emissions do not apply.

Warranty

1 year

SKU

07-360XX~X

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Alec P.
TPS adaptor

Like everything else you guys provided for my 1993, this part is flawless and easy to install.

N
Nathan S.
Good quality and easy install

This is a simple product but made well and fits great! A pretty simple install and a quick repinning for my megasquirt and everything works great!

T
Tetra
Happy with the variable TPS, nice upgrade after 26 years.

Installed quite easily with a bit of patience without the need to remove the TB; yet, had to torque the bolts by feel. Jury is still out for improved low RPM control using a Hydra ECU, but initial test is promising. Fit up was spot on and literally plug and play. Nice black anodized finish.

M
Mike
easy install

Great product. Added a Megaquirt to my 1.6. Made calibrating the TPS easy. Recommend taking off the throttle body to install. Also, be aware that the harness plug will be facing back and down when you install, as opposed to forward on the stock. The sensor gear is keyed to match the output shaft, but don't over rotate the gear and break it. It should go together easy.
