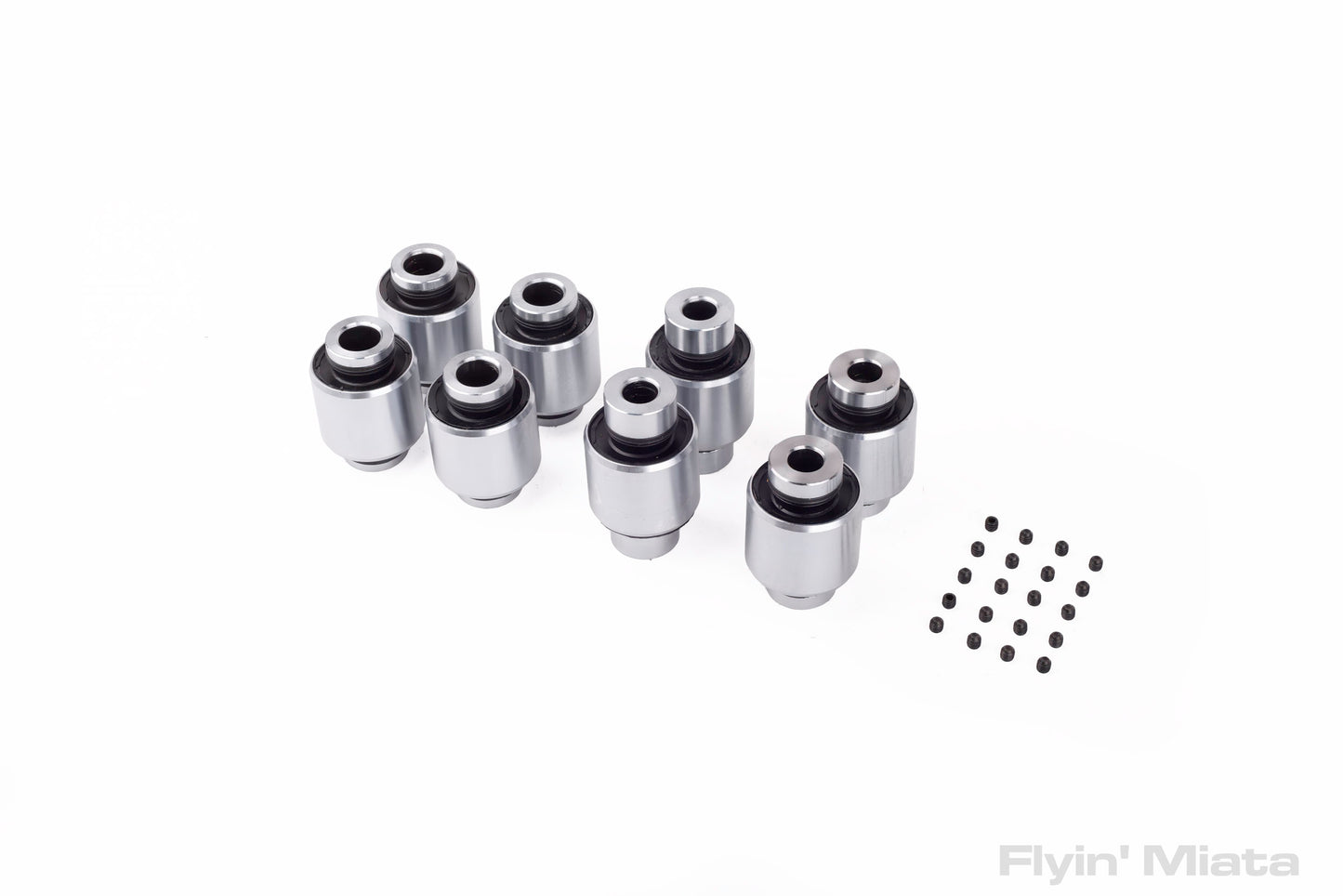

Front control arm sealed spherical bearing kit

Front control arm sealed spherical bearing kit

Regular price $299.00 USD
Regular price Sale price $299.00 USD
Sale Sold out
More expected on Feb 26, 2024.

SKU

13-98125

Data

Fits: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1999, 2000, 2001, 2002, 2003, 2004, 2004 MSM, 2005, 2005 MSM

Emissions: Emissions do not apply.

Shipping restrictions: None

Warranty: lifetime

View full details

Stiffer rubber control arm bushings are a definite suspension improvement as are - high quality - poly bushings. But what do you do if you want zero deflection and zero resistance? You need bearings! Sealed spherical bearings, to be specific. This is a complete set for all front control arms only of sealed spherical bearings for your control arms. Zero squish and basically no resistance to movement so your suspension can work on its own, with no bushing "spring rate" to work around. This means that your shocks and springs are the only thing holding your car up, meaning that there's no guesswork in getting everything dialed in perfectly.

So why spherical bearings instead of "normal" bearings? There has to be some misalignment allowed between the control arms and subframe to make it possible for the suspension to be aligned, the fact that the bearings are spherical gives that. In addition, these are complete, custom, spherical bearing assemblies. These aren't generic spherical bearings.

Since there's no deflection, your alignment won't change as you accelerate, brake, and turn. This means that your alignment will be what you set it to, assuming your alignment cams don't slip, at all times. This is especially great for track cars.

But won't they wear out? Not really. They're made of specially-plated Chromoly, and are sealed against dirt and water intrusion. They also have a limited lifetime warranty - basically, everything but improper installation, crash damage, and shipping costs is covered.. Our supplier has over 50,000 street and track miles on a few different sets at this point, with no issues.

When driving, sharp impacts such as expansion joints will be transmitted more than with rubber bushings, otherwise NVH is minimally affected. If you are only changing the front bushings, you will not notice the sharp impacts as much as if you were changing the rears. You will also have to adjust your damping because of the drop in effective spring rate.

Installation is definitely more involved than normal bushings. Once you remove the stock bushings, you'll need to clean up the bore, drill and tap holes for set screws, then push the bearings in. While you don't necessarily need our specific tool kit for that, we do have a complete tool kit to make your life easier. If you're very mechanically competent and have a plethora of tools at your disposal, you probably won't need it. If either of those don't describe you, we recommend getting the tool kit. When in doubt, get the tool kit.

The install kit includes:

  • Flex Hone
  • Drill bit (4.2mm)
  • Tap (M5 x 0.8)
  • Sleeves and a pre-drilled bar to perfectly locate the set screw holes
