Flyin' Miata ND Little Big Brake Kit (front only)

Name: Flyin' Miata ND Little Big Brake Kit (front only)
Brand: Flyin' Miata
SKU: 14-16160 GRAY
Price: 649.0 USD
Availability: InStock

$649.00 USD

Sale Sold out

Product variants

Quantity

View full details

Description

You could buy a $3400 option package for your ND to get Brembo brakes and BBS wheels - or you could pick up Flyin' Miata's exclusive Little Big Brake Kit and save big.

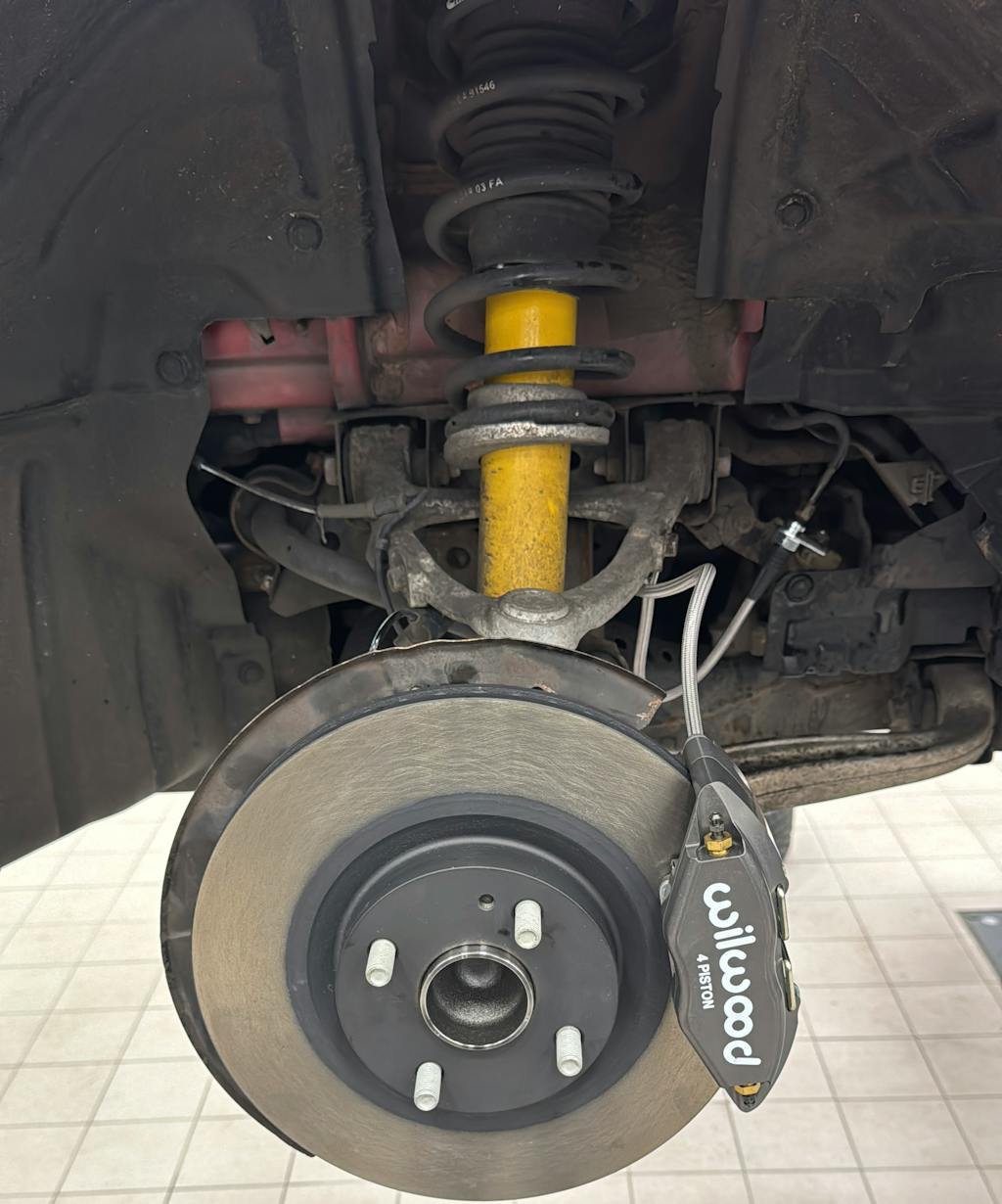

What's a "Little Big Brake Kit"? It's a light, stiff four-piston caliper mounted on a stock rotor. This gives you great pedal feel, a huge selection of pads that are easy to change, a drop in unsprung weight and low consumable costs.

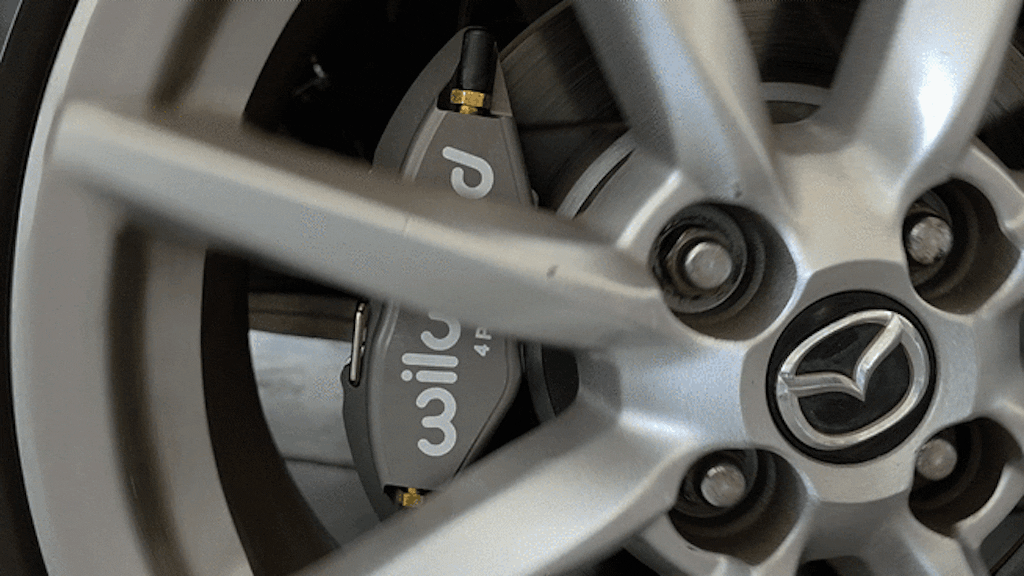

The calipers are four piston Wilwood Powerlites. This is a newer design than the old Dynalite, offering improved stiffness and lighter weight. They form the basis of our Little Big Brake Kits for other models as well. Because the new calipers are aluminum, there is a significant unsprung weight savings: 5.45 lbs per wheel in the front when compared to the standard ND brakes. That's an overall savings of nearly 11 lbs of unsprung weight. Even the Brembo cars can save over 3 lbs per corner.

Since they're so stiff, they don't flex when you stand on the pedal. This gives a very firm, reassuring pedal with no springiness.

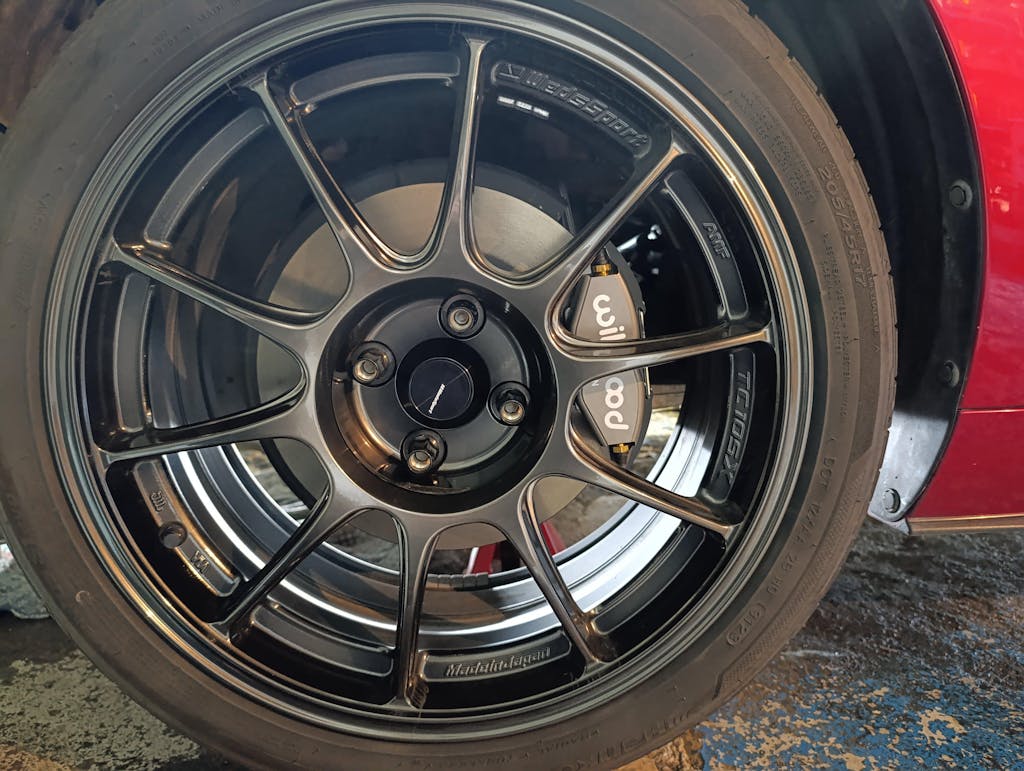

As a bonus, these calipers are more compact than the stock ones. This allows the use of 15" wheels. We've tested them with both 15x8 and 15x9 Gen4 6UL wheels. They also fit under stock 17" wheels without the need for a spacer.

These calipers are hard-anodized to make the coating very durable and resistant to changes due to temperature. This hard-anodizing means that there's no dye, which means that the exact shade can vary. It's important to note that the shades of grey will likely not match perfectly. We can't accept returns due to mismatched caliper colors. If you'd like your calipers to match perfectly, please choose one of our big brake kits in red powder coat.

Fits 2.0L cars, including all North American ND MX-5s. 1.5L cars use a different rotor size, so you'd need a set of 2.0L rotors to go along with the kit.

Will they fit your wheels? Well, we know they'll fit just about any wheel we've tested and they definitely fit behind stock ones, our Kōgekis, and our Tobus. We do recommend you check against your own, however. Use our handy template to be sure.

Front template

Includes BP-20 front pads and braided front brake lines. You will reuse your stock rotors. Also available as a four wheel kit.

Note: The piston sizes are well-matched to the stock hydraulic system, an almost perfect match to factory sizes and the same 3.0 square inch setup as used on other kits. Also, the 5.0 square inch pad size is very slightly smaller than the 5.4 square inch of the factory (that's 7% smaller, not 30% as claimed elsewhere) but the swept area is the same. As always, the only reliably accurate source of information about our products is from us.

Instructions

Click here

Shipping

Ships free in the US.
Details

There are no shipping restrictions on this item.

What does it fit?

Emissions

Emissions do not apply.

Warranty

none

SKU

14-16160 GRAY

Big Brake kit is good :)

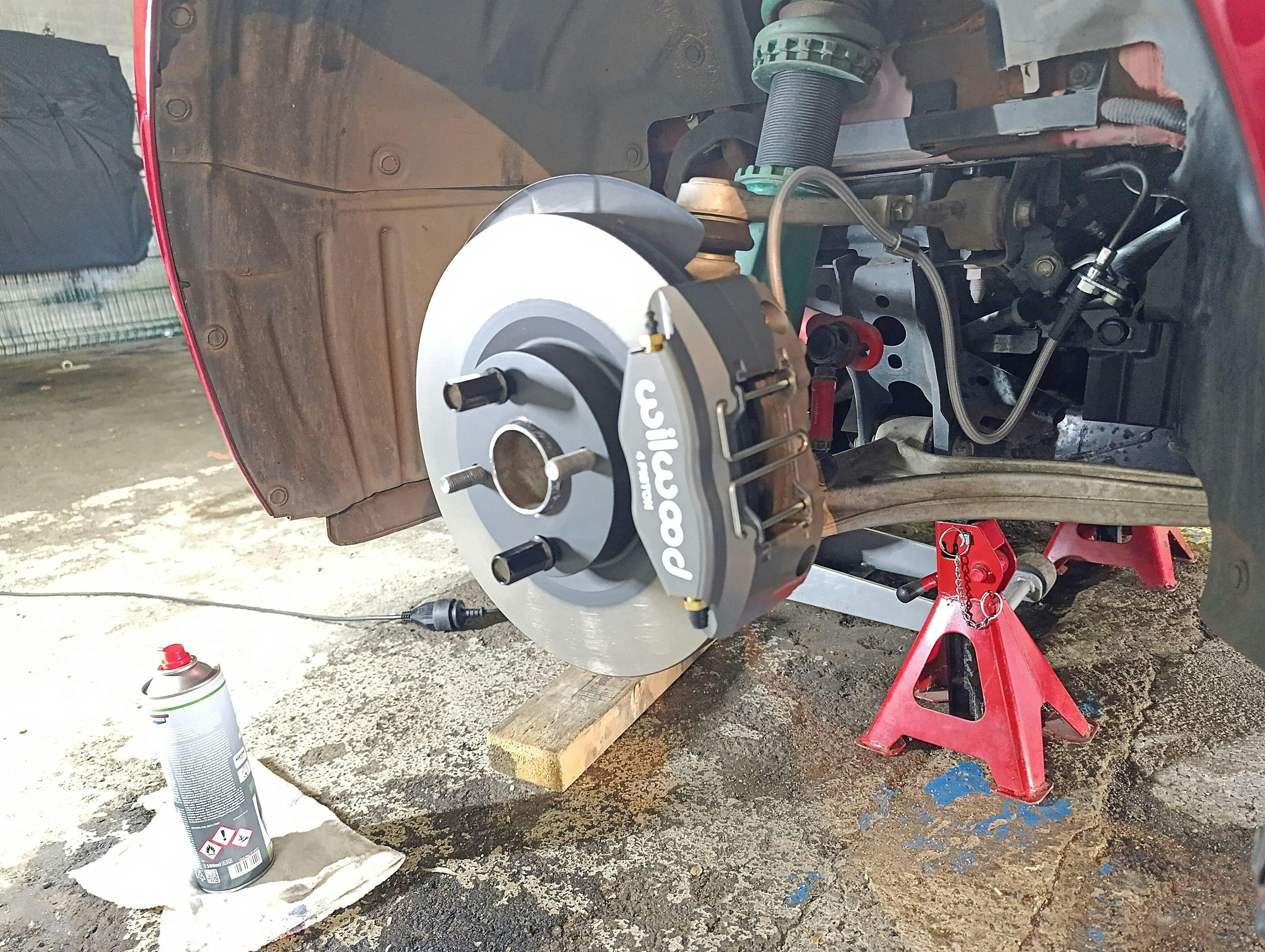

Got this as a replacement / upgrade for my front calipers. Well worth it. Looks so much better than OEM. The installation process was pretty easy and everything you need comes in the box. The delivery was fast considering it was shipped internationally for me. They even give you FM stickers so if that doesn’t convince you I don’t know what will.

The perfect upgrade for non BBR Miata’s

For those that have an ND that wasn’t optioned with the BBS, Brembo, and Recaro package, I genuinely think this is the best option considering performance, price, ease of installation and flexibility when it comes to wheel choice. My initial impressions when going to test out the brakes is that it the pedal felt like it grew a bicep (literally) but quantifying it numerically I’d say the pedal feels about 40% stiffer. Whether that’s due to the caliper itself, the stainless steel lines, getting my fluid flushed for the first time, or all of the above, it’s a good feeling knowing I can trust my brakes again.

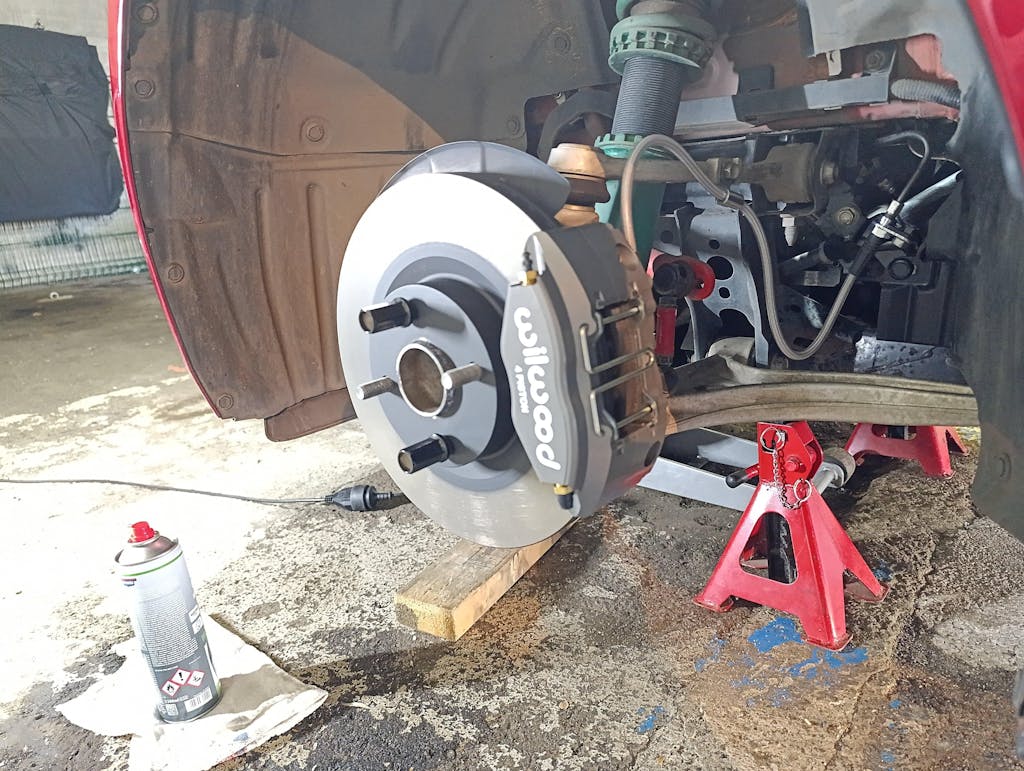

As far as installation goes? It’s an extremely simple job and that’s coming from someone who hasn’t ever tooled on a car this intrusively until now. The instructions, while not included in the package, was pretty straight forward but I would highly recommend FM to make a video on the install as the only hiccups I encountered was finding the right stainless steel lines to use on the right and left side (because they are different but they’re not labeled as such) as well as the hex screws that attach the caliper to the bracket. No where in the instructions does it list what size hex to use and even when referring to a Flywheel Films video, they used a 6mm although my kit seems to be using a slightly different size and when using a 6mm hex, it only continued to strip the head of the screw not allowing me to tighten it to the correct torque setting.

In the end, I think this kit is perfect for the people that have an ND that never came with the bigger brakes or for GT owners as it upgrades just about everything in the braking system. (say for rotors, rear lines and rear calipers) Now if you take your car to the track often or if you’re pushing it very hard on the street running forced induction, then I’d probably advocate for one of the other brake kits that includes larger rotors as after a few unrelenting instances I’m sure the stock sized brakes would start to overheat. My only genuine complaints about the kit is the unlabeled stainless steel lines, the strange sizing on the caliper bolts, and it would be nice if they came in other colors. (I know the Powerlite comes in different colors but I’m not sure if this specific version of the Powerlite comes in different colors) And it would’ve been nice to be able to option the kit with new brake rotors.

Thanks FM for being a genuinely cool company, you’ve got yourself a returning customer for as long as I own a Miata (and that’ll be forever)

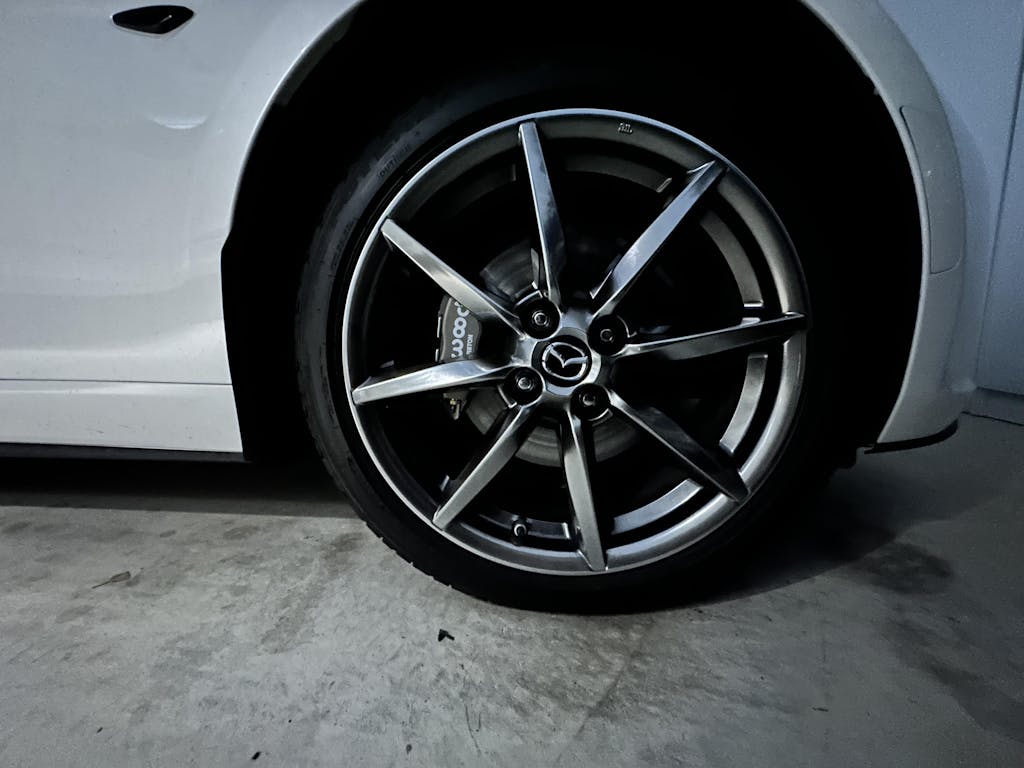

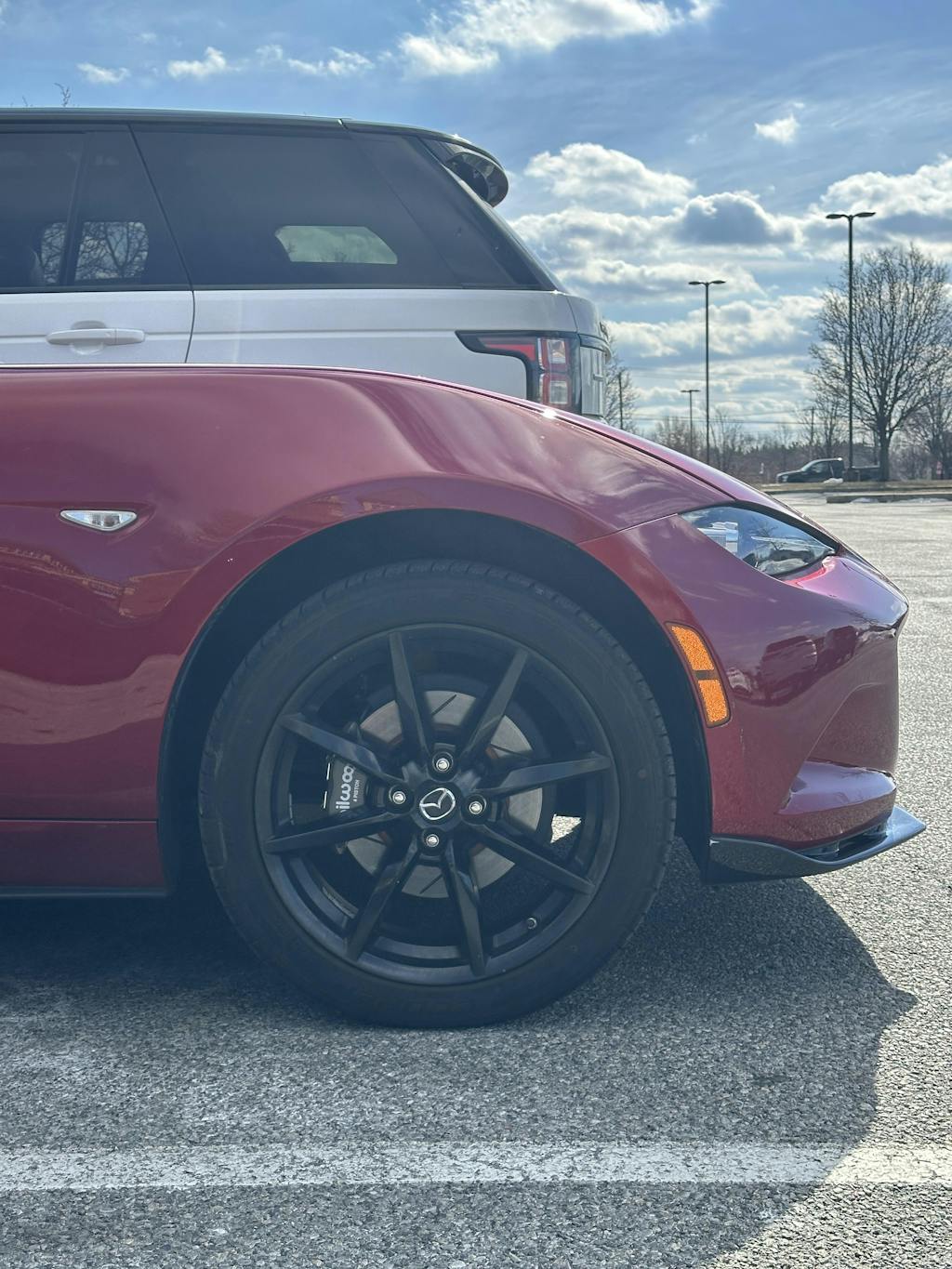

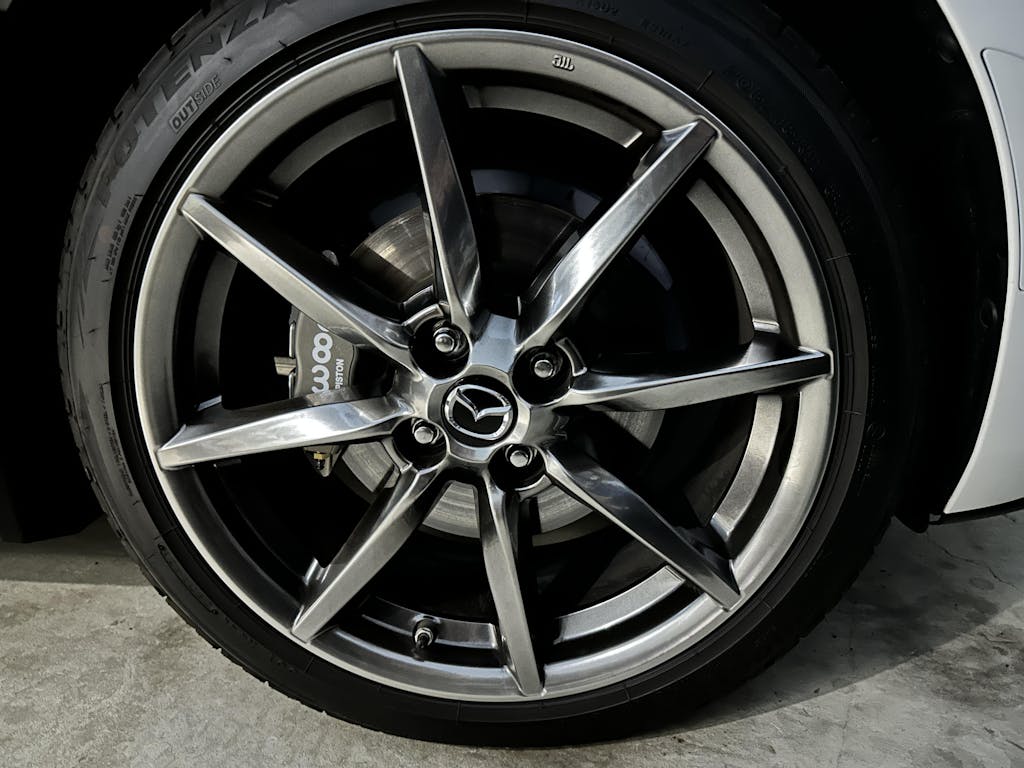

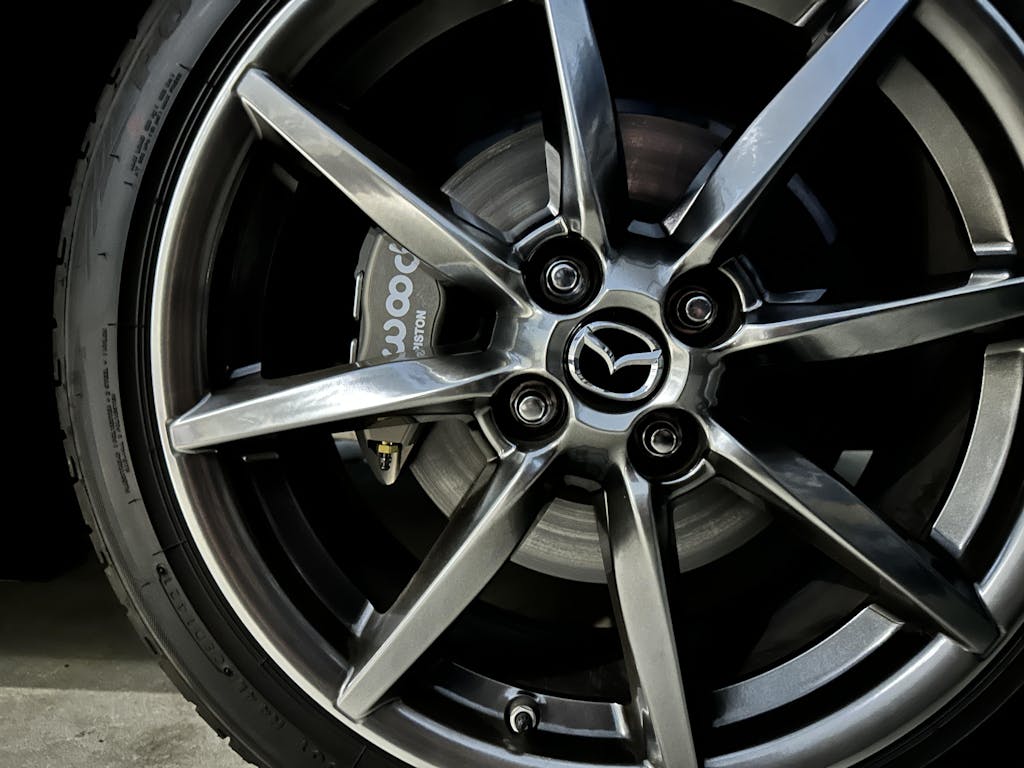

Great looking, clear stock 17 inch.

Installation was straightforward, great looking, clear stock 17 inch without spacer. Only wish it comes in other colours.

Great kit, big improvement.

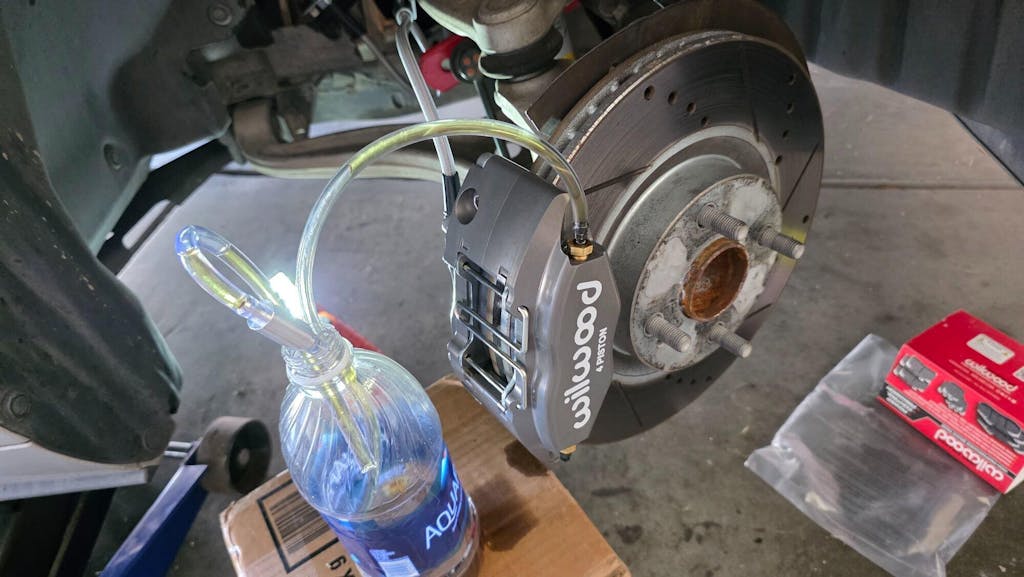

I love really good brakes! These are easy to install with great instructions and torque values included. This kit noticeably improves brake pedal feel and brake performance. After installing slotted rotors, rear brake hoses, and Porterfield R4S rear pads, I have a brake system that is levels above the OE one. Add some DOT 4 fluid and you're ready for the track. These work great for street use and also worked very well for the 1 track day I've done with them (so far). The Wilwood BP20 pads are wearing well and seem pretty easy on the rotors. Overall very happy with this setup and they look great behind the wheels, not to mention the huge unsprung weight advantage. I would be sold on the rears if the parking brake were stronger...may get them anyway. Thanks, FM!

Great value, would consider rears with a stronger handbrake

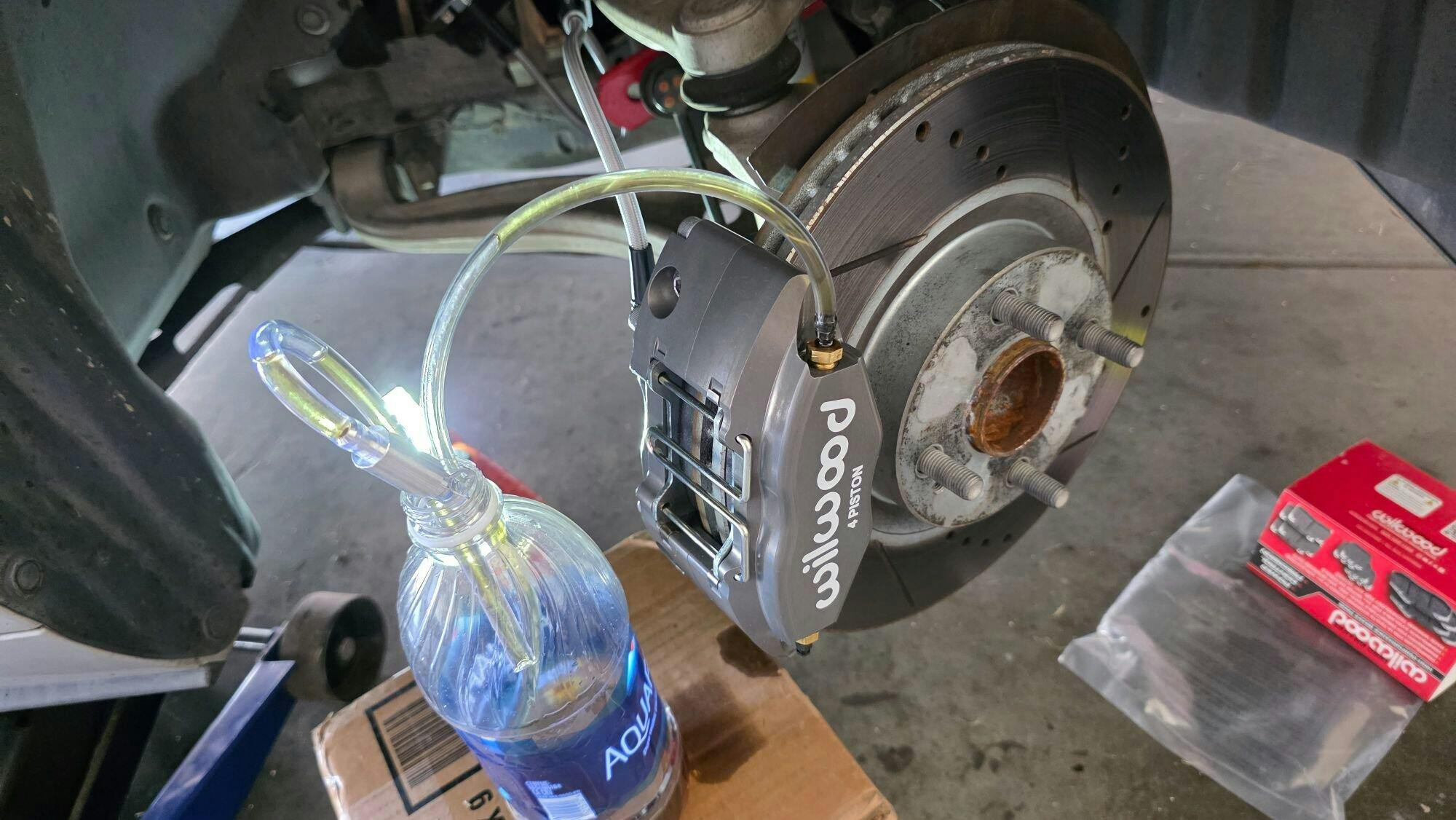

Fantastic product and great value. The LBBK replaced the Wilwood 6-pots that I previously had on this car (since sold to another ND owner), and which were great calipers but a real pain when replacing pads. Also saved a bit of weight at each corner. I also added StopTech slotted rotors and Speedbleeders, and Porterfield R4 pads for both track and what limited street driving (canyons) that I do.

Installation was a snap, bedded according to Porterfield's instructions, and they look fantastic. Took a 120 mile round trip drive on my favorite hill country loop on Sunday, brake performance and feel was perfect. The only downside is that, because the calipers are identical, "Wilwood" reads top to bottom on one corner and bottom to top on the other.
