Engine rebuild kit for 1.6 engines

Engine rebuild kit for 1.6 engines

No reviews yet
Regular price $730.77 USD
Regular price Sale price $730.77 USD
Sale Sold out
Option 1
Option 2
Option 3
We do not currently have any inventory on hand.

SKU

I04-00001NA6~LN~25~25

What does it fit?

1990, 1991, 1992, 1993

Instructions

Instructions are not currently available.

Emissions information

Not applicable

Shipping restrictions

There are no restrictions on this item.
View full details

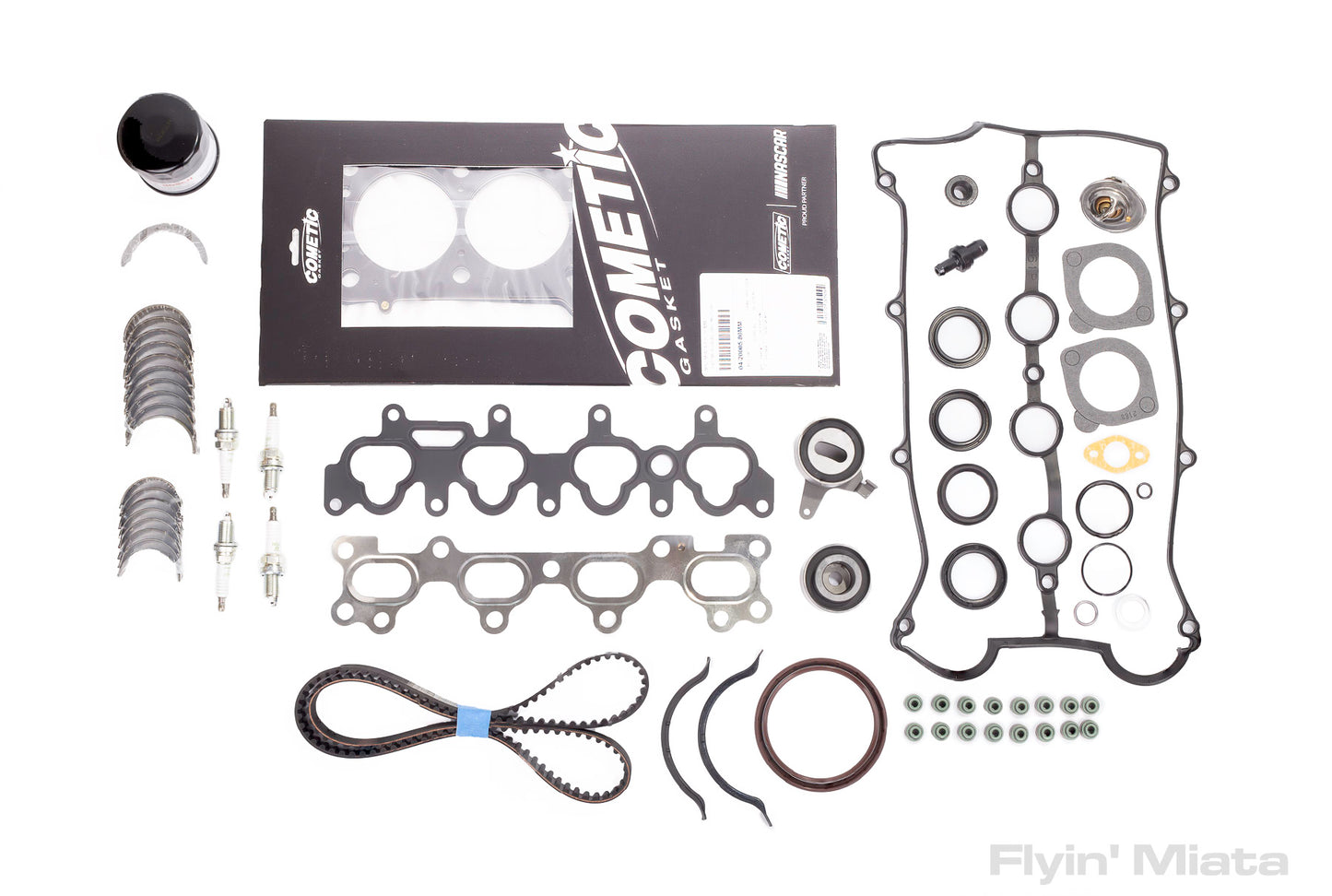

All the gaskets and bearings required for an engine rebuild, right down to spark plugs and a tube of the best assembly lube for your bearings. These are the same parts we use to build every motor that leaves Flyin' Miata. For example, the bearings are top-quality tri-metal. The picture may not be completely accurate, so please read the list of parts below.

Motors with a four-slot front crank pulley and a VIN of 209446 (built mid-1991) or lower are "short nose" engines and should select the appropriate base kit. Eight slots and a VIN higher than 209446 are big nose engines.

Includes:

  • Belt, Timing (Camshaft)
  • Headgasket, 1990-93, .040" MLS
  • Cam Sensor O-Ring
  • Valve Cover Gasket
  • Gasket, Thermostat, all years
  • O-ring, Thermostat housing
  • Seal, Rear Crank Oil, all years
  • Seals, Camshaft Oil
  • Seals, F/R oil pan end
  • Gasket, oil pick up, all years
  • Gasket, intake manifold
  • Seal, Front Crankshaft
  • 16 Valve Stem Seals
  • Gasket, oil pump (small nose engines only)
  • O-ring, oil pump (big nose engines only)
  • Oil Filter (Aftermarket)
  • Dip Stick Tube O-ring
  • PCV valve grommet
  • NGK ZFR6F-11 spark plugs
  • Your choice of ACL Race or King XPG main bearings (depending on availability)
  • Your choice of ACL Race or King XPG rod bearings (depending on availability)
  • ACL Race thrust bearings
  • PCV Valve, Turbo - all years
  • Pulley, Tensioner
  • Pulley, Idler
  • Gasket, Exhaust Manifold
  • Thermostat, 180 degree
  • Redline Assembly Lube, 4 oz.


The kit does not include piston rings, oil or water pumps. It also doesn't include sealant for shipping reasons, but you can get it locally - we recommend Permatex "Right Stuff" from NAPA, 7652694.
