FM V-Maxx XXtreme Stage 2 Track Pack suspension kit for NA chassis

FM V-Maxx XXtreme Stage 2 Track Pack suspension kit for NA chassis

Exclusive to Flyin' Miata!

Regular price $1,504.44 USD
Regular price Sale price $1,504.44 USD
Sale Sold out
Option 1
Option 2
View full details

Collapsible content

Description

V-Maxx coilovers give you an adjustable dual-spring setup for ride and handling. FM sway bars let you adjust your handling balance and make the car corner flatter and transition faster. Mix them together and you get the V-Maxx stage 2 kit - an excellent recipe for handling. It's what the Hammerhead teams used at the punishing Targa Newfoundland.

About the sway bars:

Sway bars are used to make your car corner flatter and react faster by keeping the body (and all the weight) under control. Ours are set up for neutral handling and are adjustable so you can tailor the handling of your Miata to your own driving style.

Our swaybars are hot formed from 4140 CrMo spring steel. This means they're stronger than the cold-formed bars found elsewhere. We've designed them to keep the same handling balance as your stock sways, but they have two settings in the front and three in the rear for fine-tuning. Includes brackets and urethane bushings with waterproof grease.

NA6 sizes are 0.875" front and 0.625" rear.
NA8 sizes are 1.0" front and 0.625" rear. They have different geometry so the front bars are not interchangeable. Match your sway bars to your chassis.

About the V-Maxx:

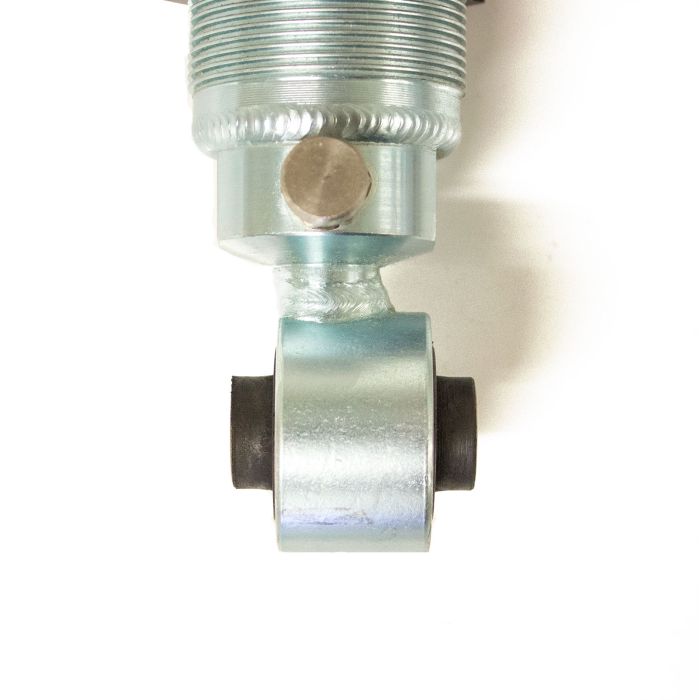

Improved! The rear shocks now have offset bushings for extra clearance between the spring and the halfshafts. This gives you a wider range of height adjustment.

The XXtreme Track Pack comes with stiff 504 lb/in front and 336 lb/in rear spring rates. They're aimed at cars that spend most of their time on the track. It can still be driven on the street, but it is stiff. Early Miatas should have some sort of chassis reinforcement in order to take full advantage of these spring rates. If you'd like a softer option more suited to street use, these are also available with the Sport spring rates for the same price. The springs are also available separately if you'd like to have multiple sets on hand.


So what makes them work? One of the problems with a lot of coilover setups is that the spring can go loose under full droop. When that happens, there's nothing to extend your shock any further so you've essentially reached the end of your suspension travel. The secondary spring in the V-Maxx coilovers helps to extend the wheel further and give more useful suspension travel.

The secondary springs are 112 lb/in, which gives them enough strength to overcome the damping of the shock. On most cars, they are just barely fully compressed at rest. Other systems will use helper springs as soft as 5 lb/in, which simply isn't enough to do anything useful when you're moving down the road.

Since the spring perch is adjustable, you have full control over ride height and cornerweighting. A 1/2" shorter rear shock body gives extra compression travel for improved ride and handling, even at lower ride heights. The stock upper mounts are retained. They have a two-year warranty and are available in a TUV approved version with different spring rates.

The XXtreme Track Pack package is currently only available in the NB fitment. So we've come up with a special package allows NA owners to update their cars to the superior NB specification. It includes a set of upper mounts and all the required bushings and washers to install the later suspension in an early car. This allows you to take advantage of the newer design Mazda developed after 10 years of Miata production. You also don't reuse any of your original suspension parts, so installation is easier with no spring compressor required.

Not compatible with FM's rear upper mounts, as this combination provides more compression travel than the suspension can physically deliver.

Instructions

Shipping

Ships free in the US.
Details

There are no shipping restrictions on this item.

What does it fit?

Fits: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

Emissions

Emissions do not apply.

Warranty

2 years

SKU

I13-16750NA~N8~LN
