Flyin Miata Stage 1 turbo system for 1990-93
Flyin Miata Stage 1 turbo system for 1990-93
Exclusive to Flyin' Miata!
Couldn't load pickup availability
Collapsible content
Description
Emissions legal everywhere in the US! CARB EO D-601-3. This is the only truly CARB legal forced induction option available for the 1.6.
Flyin' Miata turbo systems have been the standard for years. They offer easy installation of safe and clean power with proven durability. Our Stage 1 turbo system - once known as the Voodoo II - is ideal for someone looking for an easy installation, good horsepower, no emissions hassles and lots of upgrade potential (for dedicated track / not-street-legal cars). Expect approximately 160 hp at the rear wheels, compared to a stock 93 hp. This is limited by the size of the stock injectors.
The manifolds have just been redesigned after some CFD (computational fluid dynamics) testing. They now offer 24% greater flow than our previous design and are also nearly 4.5 lbs lighter. Combined with the new outlet, the manifold / turbo / outlet assembly is nearly 6 lbs lighter! They have staggered runner diameters to ensure consistent timing of the exhaust pulses into the turbine. This means faster spool and the potential for higher power. Now Cerakoted! The manifold and outlet are both Cerakoted in C-7900 Glacier Titanium. It's rated for 1,800°F (980°C), so it's perfect for our application. We've been running this coating on our cars for over a year, and it's held up great through track days and daily driving. The new parts are a direct replacement for the old. Do you want even more info on our new manifolds and outlet? You're in luck! Check out our Knowledge Base article on them here.
The intercooler means that you will keep all of your horsepower no matter how hard you run your car. It's powder-coated for durability and good looks, but with a special thermal property that allows it to shed heat as well as bare aluminum. The FM logo on the intercooler can face forward (visible) or rearward (invisible).
All of our turbo kits use the same basic hardware. Every part has been designed taking performance, durability and installation ease into consideration. We don't believe there is a better (or more complete) turbo system available. With our kits, you won't be making extra trips to the hardware store for nuts and bolts; every part you need is included.
The Voodoo Box ekes as much power as possible out of the stock injectors without resorting to mechanical tricks such as high fuel pressure. There's no tuning and no need to install high-pressure fuel pumps or bother with fuel lines at all. The car simply makes smooth, effortless power without a fuss.
Fuel management is handled by our own Voodoo Box, which uses the stock injectors to deliver more fuel. Because it only modifies the signal under boost, the car acts completely stock at idle and cruise. Tuning is a quick and simple process. 1993 California cars have sequential (one at a time) fuel injection, whereas non-CA 1993 cars and all 1990-92 cars have batch (two at a time) fuel injection, be sure you choose the correct option. Check the underside of your hood to see what emissions your car has.
The turbo is a GT2560R, which is a great match to the Miata engine at this boost level. It makes just as much boost down low as a smaller unit, but without choking off the top end. It's now attached to the manifold with our custom-made Inconel studs and Stage 8 fasteners - an upgrade from the stainless steel studs we used to use.
Along with this turbo system, you will need a new clutch. Cars that see track use or are in hot climates will also require a radiator upgrade.
The downpipe may or may not fit with your automatic transmission. We've seen mixed results. We cannot guarantee fitment with an automatic. You could also need a vacuum accumulator and there might be some idle issues - in short, while it can be made to work, prepare for a bit of a headache if you're installing this on an automatic car.
Water supply note: if you are using an FM coolant reroute, you will need the connection kit for the reroute to take full advantage.
Overall fitment note: The parts in this kit assume you have the original engine in the car. If your engine has been swapped for one from a different year, please contact our tech support department to ensure you get the correct parts.
Tools note: A 37/64" drill bit and 3/8" NPT tap are required for installing the oil drain and two M8x1.25 nuts are used as "tools" to install the turbo studs. If you do not already have these tools available to use, we have a separate tool kit available to purchase, Bag 2A, listed above.
Remember, all FM products come with full Lifetime Support to the original purchaser!
Be sure to check out the installation video series, linked under instructions. Note, it's fairly in-depth so make sure you have your popcorn and comfy chair handy.
Instructions
Shipping
What does it fit?
Fits: 1990, 1991, 1992, 1993
Emissions
50 state legal!
CARB EO: D-602-3
Warranty
1 year
SKU
I bought this kit at the end of 2018. I installed it February 2020, and stressed tested it like crazy since i got the coolant relocation kit from Flyin Miata. The reason why I waited so long is because I had the money at the time, and wasn't sure how the future was going to play out. so bought the parts, stored, and assembled when able to. Didn't want to rush anything.
I have a 1990 miata, and the engine was solid, but i found a 93 engine. rebuilt it, and slapped the turbo on it. install was rather painless since did the majority of it while the engine was outside. Instructions were thorough, and customer service has always been great.
Only issue with the install was that the kit i received did not compensate for my cruise control. It sort of sucked having to gut the cruise control, but i had a limited window of time to make it happen. I remember a staff member from flyin miata reached out to see if order was alright, but since i just took inventory and stored, i didn't notice my kit wasn't for cruise control. so that sucked cause cruise control was the first thing i ever fixed on my own on that car. but oh well.
So now for the actual review of the turbo kit. running it 8 pounds of boost. man is it a blast. no more praying to a higher power when i enter the freeway. this thing hauls, and is totally controllable. the engine loves to rev up so you lay on it and you are on boost so fast that those cool kids won't be able to make hair dressers joke at you at the light. absolutely love the upgrade, well worth the price (i think i got it during black friday).
another issue i faced, i started to overheat. but not during normal driving, i like to stress test and go from so cal to phoenix in one shot and straight back. or up to lake tahoe, or vegas round trip just stopping for gas, just anything that eats a day. once the heat rose, i felt i was fighting the temperature gauge and wondering if i was going to make it. It got sketchy. i don't blame the kit, i compromised the lines running out of turbo so they began to leak and temp heat up whenever i ran to temp after my long hauls, i even tried swapping out lines to fix the line leaks. Why aren't i mad, cause i'm an idiot, that's on me. I got an upgraded radiator and fan (not flyin miata, they were sadly out of stock), bought a coolant relocation kit from FM, and the plastic undertray cause mine was missing. That was it, that was the key to the puzzle. Now i blast into palm springs laying the turbo on thick, and come straight back and my temperature barely moves. when it does rise up, it's hardly anything, and regulates fast.
that's my thorough review. the turbo is fantastic, sad i had to gut my cruise control. I had cooling issues, but i blame my driving preference instead of the parts, and was so pleasantly surprised after i bought the under-tray and coolant relocation kit. This kit is well made, stressed tested it left and right, always made it home.

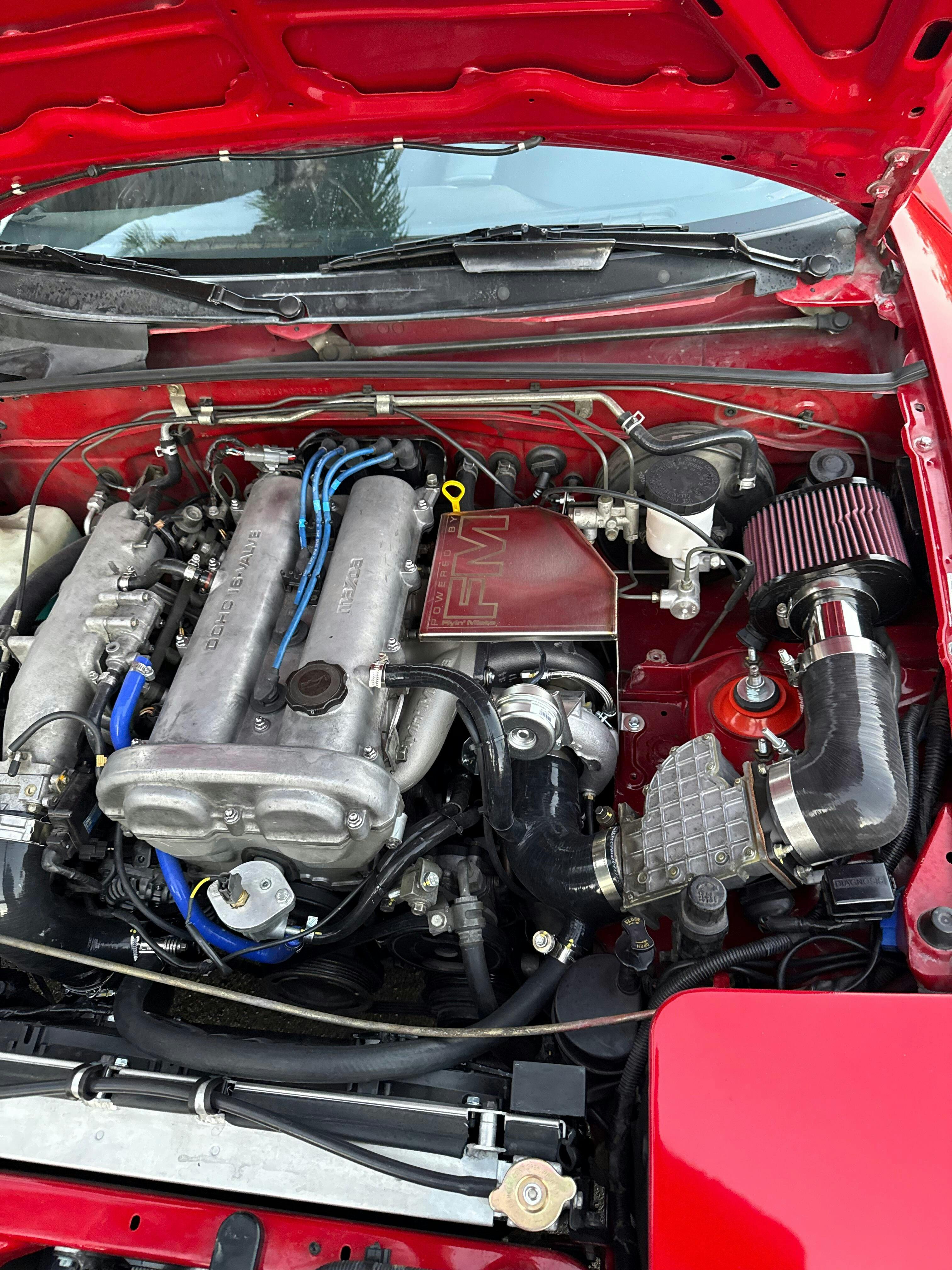

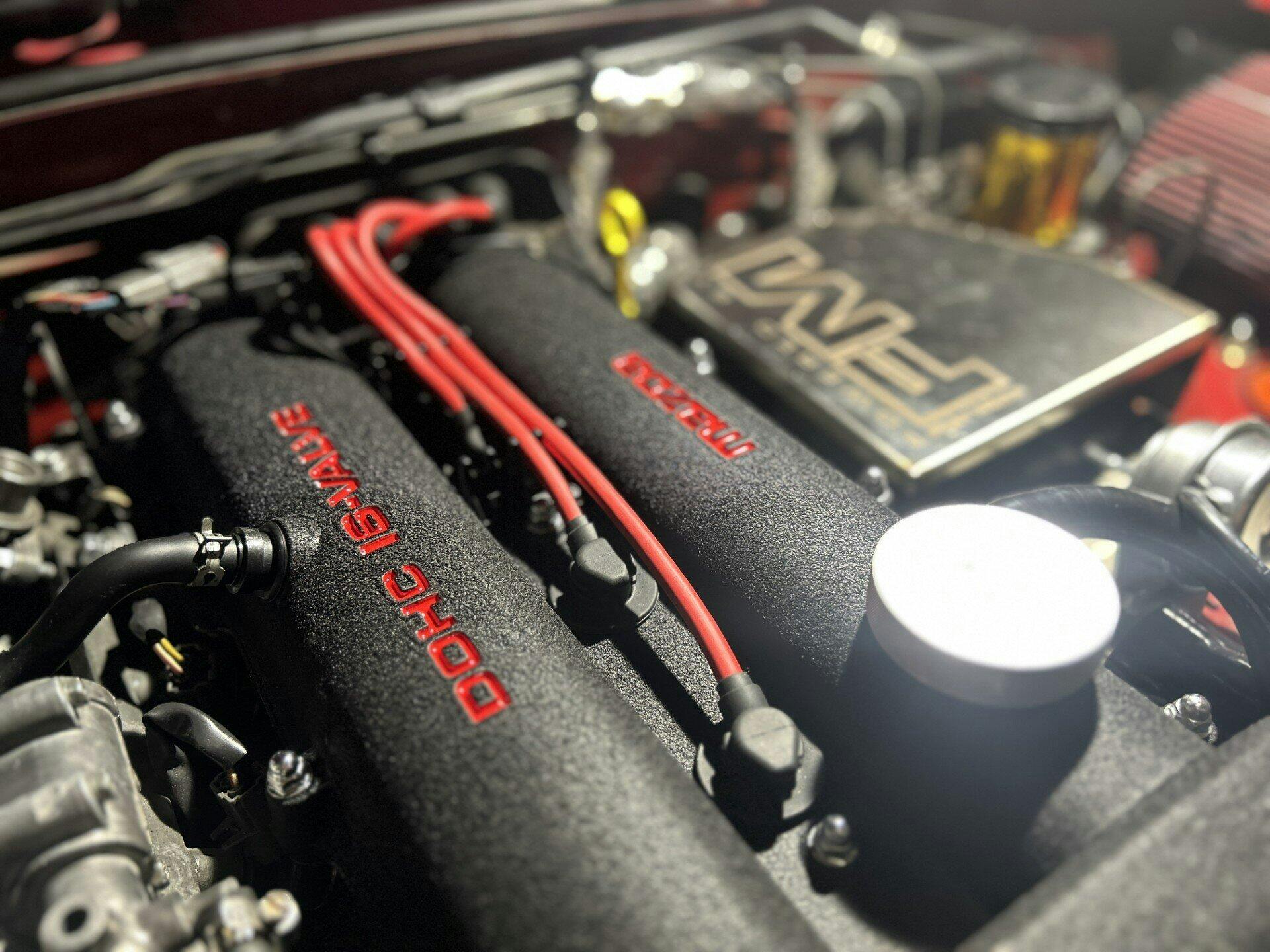

- Installed on 1991 NA 1.6 with 75k odometer (Purchased the full FM turbo kit)
- Took roughly 50 total hours (I also have NO mechanical skill, messed stuff up, but learned alot)
- With this kit, I had to install a full FM exhaust makeover (the old system was 28 years of rust and neglect)

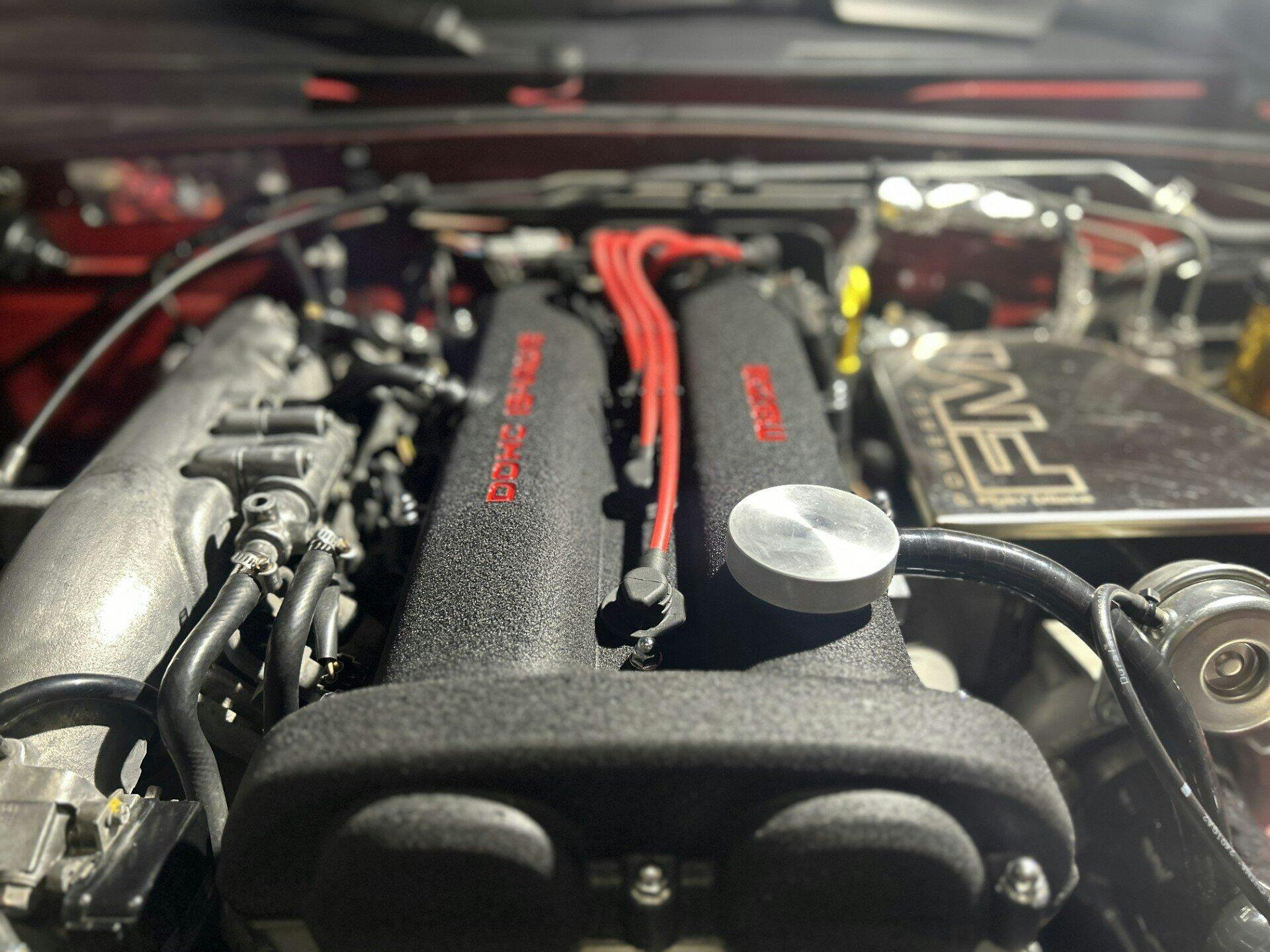

//INSTALL: This project includes everything you'd expect; wiring, cutting, cussing, drilling, trimming, test fitment, 2nd test fitment, torquing things down to spec, stepping back and smirking at your progress, then realizing "hey whats this part still doing on the workbench?"... 3rd test fitment. If you take your time and read the manual you'll certainly have an easier time than I did. FM is very helpful with answering any questions and working you through any issues you might have. The hardest part for me was the wire/vacuum line routing from A-pillar to under the dash, because contorting your body to stare under your steering wheel is unnatural- my suggestion is remove your driver seat if you need more space to work. Overall, install was simple for a novice like myself.

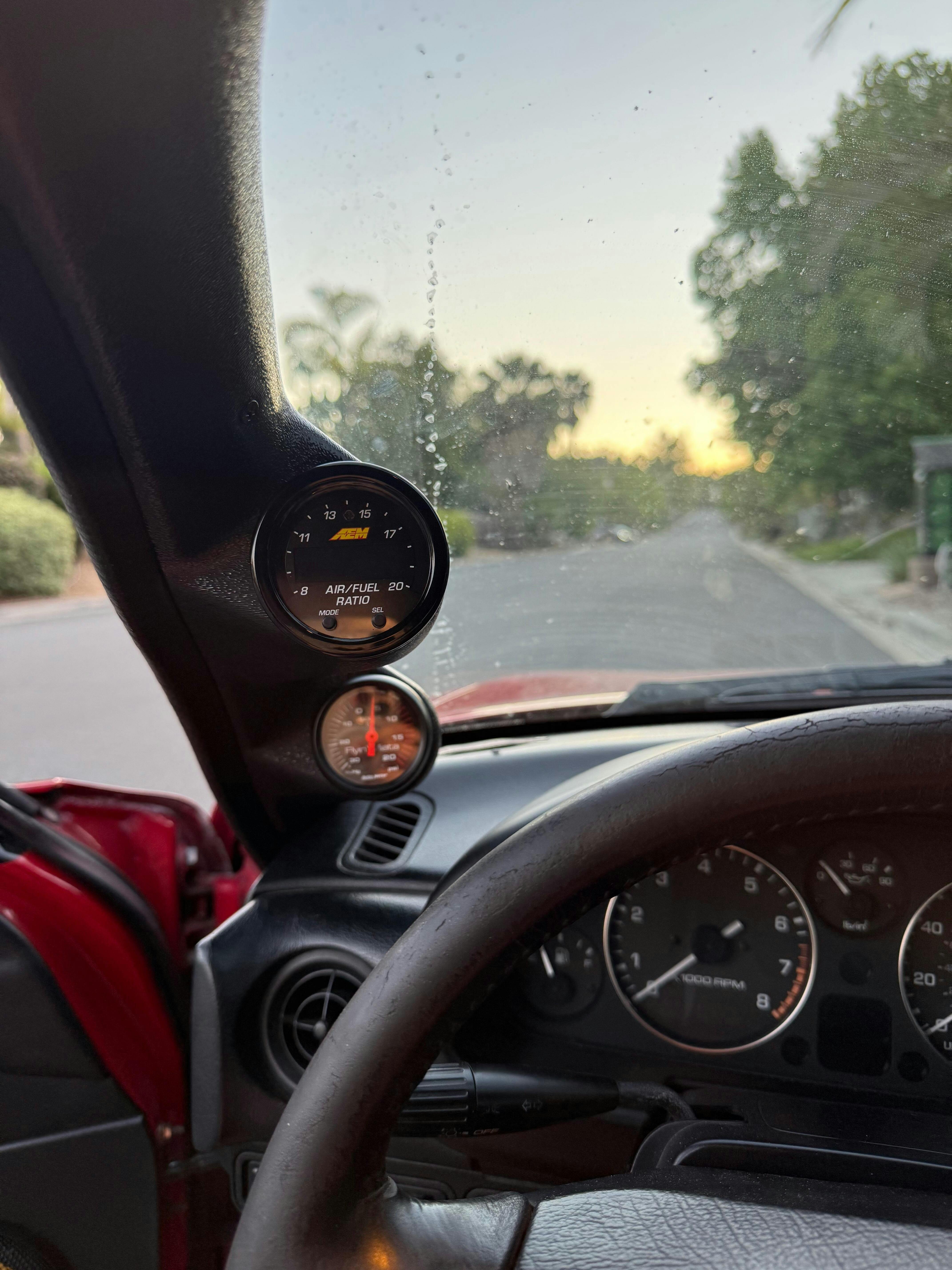

//STARTUP & DRIVE: Make sure you're double checking your timing with the timing light and checking for engine knock noises. Give the engine bay and floor a once-over for leaks while the car is running. I had an issue with a seized brake, but that's because I had my car on stands for 4 months. If you installed an AFR with your kit, make sure your numbers are good in all the different ranges as well as idle. You can do your homework on those numbers by looking around on forums etc. First 500 miles of driving is break-in period, and you should be checking your engine bay and fluids regularly to make sure all things are holding up. After that, its all fun. Rev out those gears to hear those sweet BOV releases, it's a head turner in my small town for sure
//OVERALL: Fun project, plenty of horsepower (more than double stock for me) and I can't thank FM enough for providing such an immaculate full kit that requires no extra runs to your local nut and bolt shop. Seriously, that alone takes so much headache out of the whole thing.
//YOUTUBE: FlyinMiata has a full installation of this turbo kit on their youtube channel- so if the manual has you scratching your head, check there. The full 10 video series is located in their "Stage 1 Turbo Install" playlist
I had a shop here in Maine install an FM2 Turbo combo consisting of a 2554R, Full FM Exhaust, Clutch Happy Meal with light flywheel and MS2 engine management. The end result was 205WHP (more than double the 95 it had on the same dyno prior to installation). 200hp in one of these cars is nothing short of amazing. The shop claimed the kit was one of the best-fitted and most complete they had ever had the privilege of working with. Very happy with fit and finish, and the quality of parts is second to none.
I ordered this stage 1 kit for my 91 Miata last year holiday season. And have one of my friend who is a auto shop owner to installed for me on his leisure time and it took about two weeks to finish with couple hrs a day with me on side help him out. He told me the instruction is very detailed and he didn't have any problem to install the kit. Since this is my daily driver (45 miles) to the office I thought the drive ability will suffer and the gas mileage will reduce in a big way as I'm getting more than 50% of additional horse power and torque to the little 1.6 engine. And I was wrong, I'm getting consistence local/highway combined 22 mpg compare with 28 mpg before the turbo install. That's 21% decrease in fuel economy with 50% + gain in power is well worth it. And the drive ability below 3000rpm Miata feels normal, then after 3000rpm and turbo start to boost up and boy what a night and day difference for passing a slower vehicle under any condition especially up hill just step on the gas paddle in 5th gear and car will just keep accelerate which this surprised my passenger and knowing that this is CA smog legal is a icing on the cake for me. Highly recommended if you are looking for legal and real power for your Miata this is the only after market kit for you.

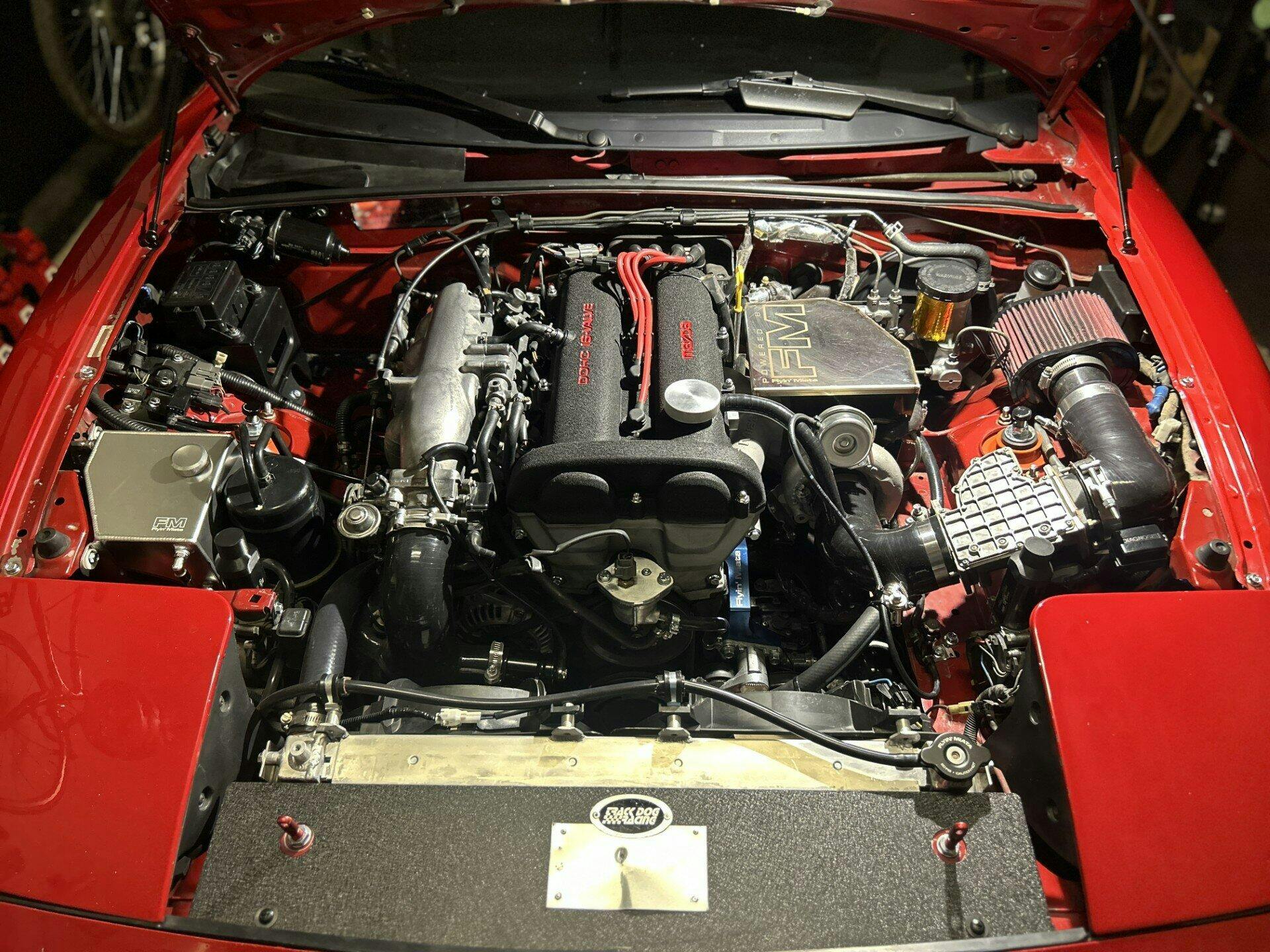

I also made this upgrade part of an extended total project for my 1990 1.6 (150K on the odometer, 71k on the replacement J-Spec Motor) - Turbo, MS Motor Mounts, FM Springs, FM Rear Shock Mounts, Paco MotorSports Braces, Delrin Door Bushings, Coolant Reroute, FM Adjustable End Links, MiataRoadster Shortshifter, and a full tune up (Water Pump, Belts, Etc).
The only additional items I had to purchase were gaskets I ripped (Be careful with the gasket if you opt for the hard oil lines). I made more support calls to FM than I care to admit to make sure my install was correct. Awesome support. Most difficult part of install for me was also installation of turbo outlet IC pipe to the IC which route in the same area of the lower radiator hose AND the hard oil line which is in this same area. Turns out there is only one exact correct way to route these together without crimping or distorting the hoses. Took a few install attempts to get it just right. Then everything fit perfectly.
I had the transmission out of the car for my install. Note:If you have your tranny out, the engine will lean forward and make the oil pan drill difficult. I had to use a jack to push the engine back into place to line the drill up properly.
I had a NASTY electrical issue (due to previous owner) that FM support spent weeks with me on trying to figure out. I can't thank them enough for staying calm as I was losing my mind.
Power is amazing and delivered so smoothly. The SOUND takes the car to an 11. It's not obnoxiously loud, its snarly and mean and I LOVE IT. Also when you're cruising out of boost she sounds like normal, so no worries about droning on long cruises.
Completely Ecstatic customer for life.
