Clutch hydraulics refresh bundle
Clutch hydraulics refresh bundle
Couldn't load pickup availability
Collapsible content
Description

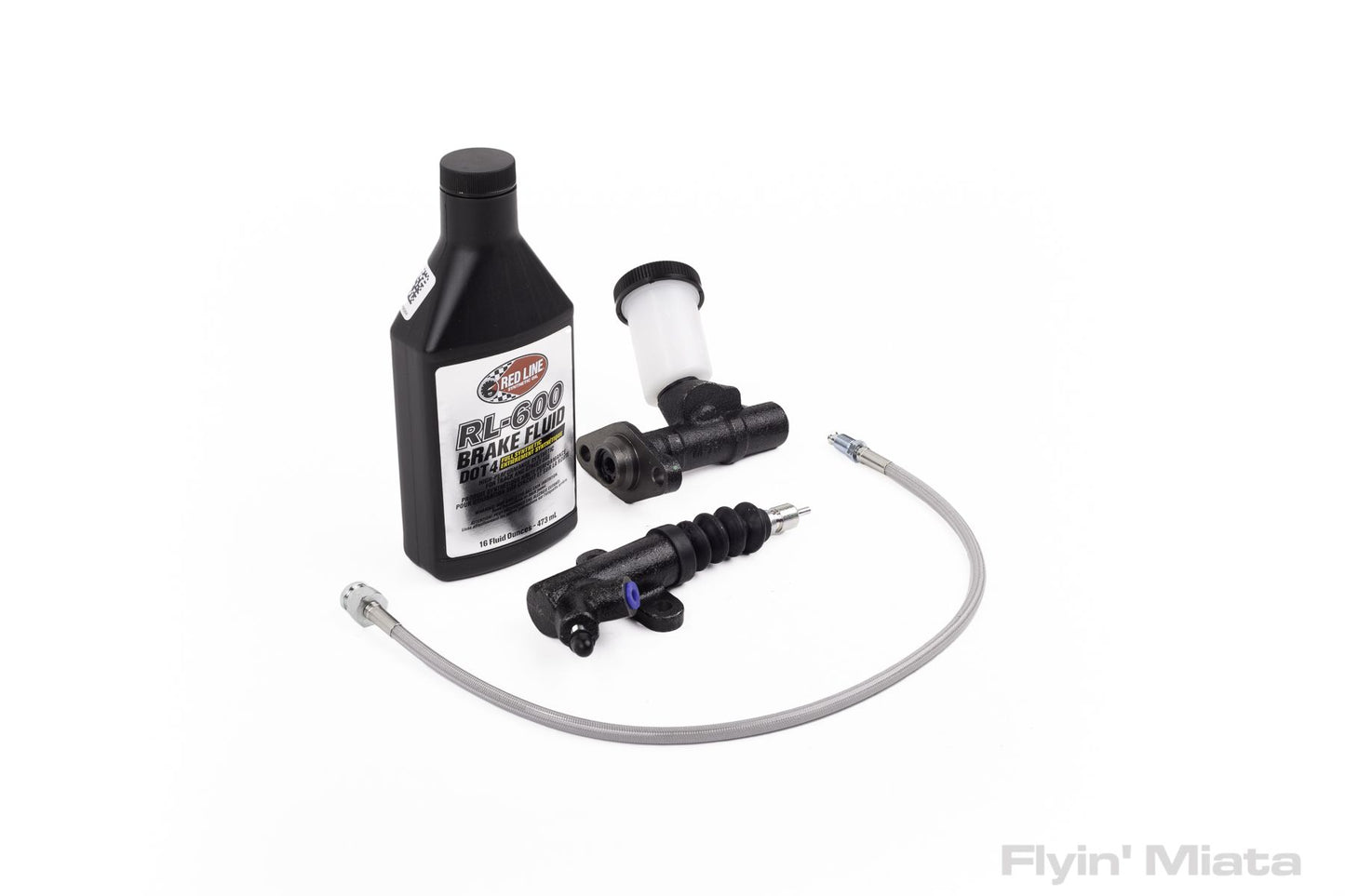

You can replace only the part in your clutch hydraulic system that is bad, or you can replace all of it. Or anything in between! Use this kit to replace everything and do it both right and once. This kit includes the master cylinder, slave cylinder, and a stainless braided clutch hose. You'll need brake fluid as well, naturally, you can choose our high-quality (and high-temp) Redline or source your own locally.
The slave cylinder changed in the middle of 1990, so be sure to check the last six digits of your VIN - this one fits 1990 models with a VIN of 111969 or lower. If you have a higher VIN, you'll need the later version. The master cylinder is the same for all 1990-2005 Miatas with the exception of the Mazdaspeed. If you have a Mazdaspeed, choose the MSM version, otherwise, choose the non-MSM version. Note that the MSM master cylinder is a Mazda part whereas the non-MSM is an aftermarket part (that we have faith in), hence the price discrepancy.
Instructions
Instructions are not currently available.
Shipping
What does it fit?
Fits: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1999, 2000, 2001, 2002, 2003, 2004, 2004 MSM, 2005, 2005 MSM
Emissions
Emissions do not apply.
Warranty
1 year
SKU
I had trouble shifting into reverse, which then turned into a horrible slave leak. If you have the spare cash, I suggest redoing the system. It's not a difficult job and worth doing if it's already going out. Upgrading here isn't that much more than replacing. I never realized how much my rubber lines ballooned. After replacing them with the braided cable, the clutch felt a lot firmer, and shifts came smoother. Definitely happy with the end result. (92 1.6)
Great product.
I have a '99 that was having a harder and harder time shifting. It wasn't the shift lever, so I purged the hydraulic line--which lead to a complete failure of the slave cylinder. I replaced the slave and installed the braided line to remove any flex in the system. Had some issues getting the line installed at the upper connection, but when I got it all together and all new fluid, the difference is amazing. I shifts as if it is brand new. Very pleased.
if you have an early vin NA with the FM light weight flywheel happy meal clutch kit, and get this kit with their line you can use the less expensive slave piston and not have to adjust your clutch rod at the pedal as much, just remove the lower bracket for the pigtail line into the slave cylinder as well as the line
Used this kit for a 01 NB2 miata. It's an easy 1hr job with a buddy. The stainless steel replaces the rubber line and the hard line the loop, after the rubber to the slave cylinder. Clutch feels nice and reduced some clunking noises in the transmission!
