1.8 conversion kit
1.8 conversion kit
Exclusive to Flyin' Miata!
Couldn't load pickup availability
Collapsible content
Description

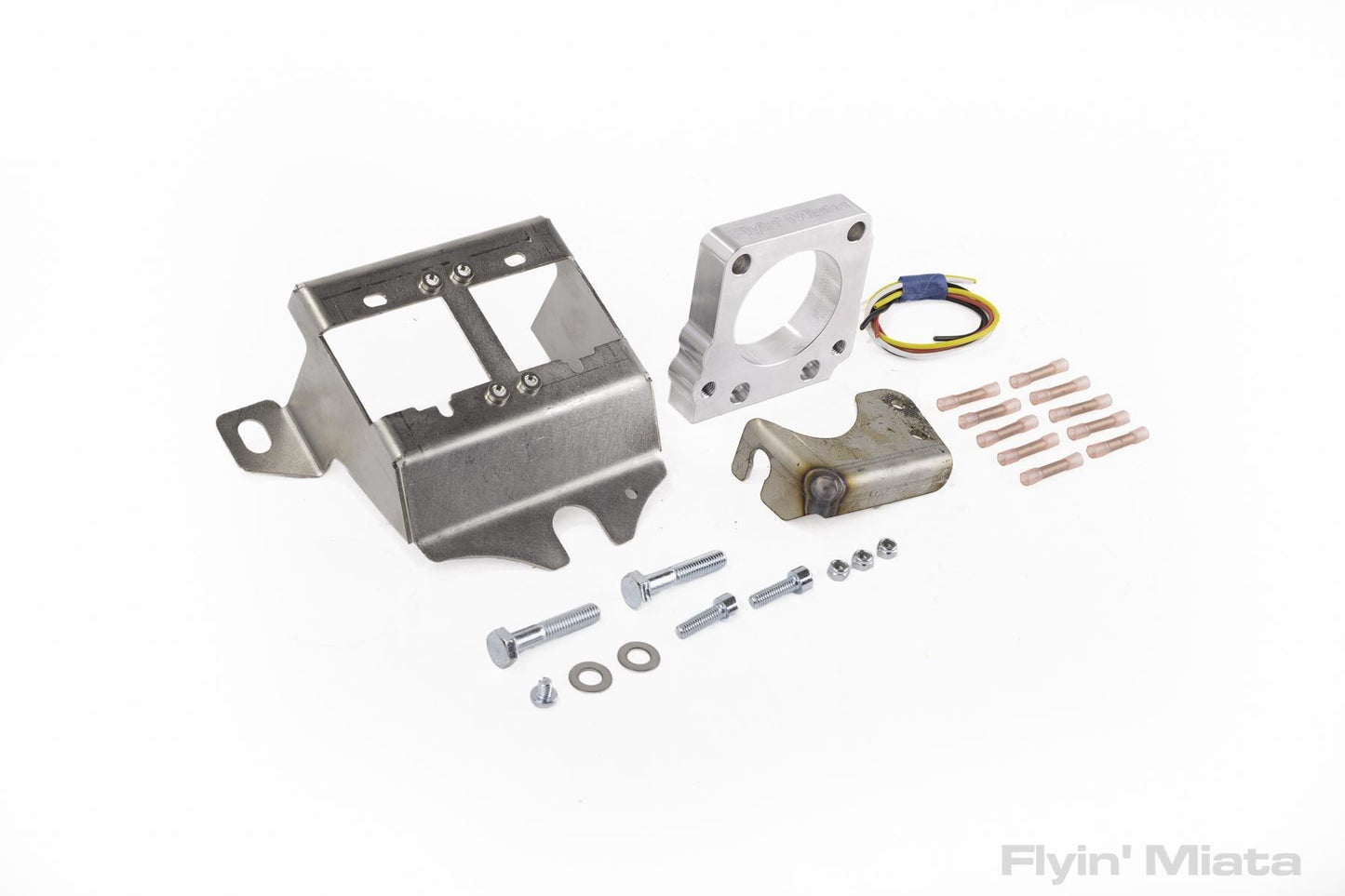

1.8 swaps are becoming more and more popular and with good reason. It's a simple way to get more power. In the past, there was some fabrication involved. Not anymore - this kit includes everything you need for the swap. All the parts are available separately as well.
- throttle cable bracket
- coil bracket
- motor mount brackets (optional)
- rubber motor mounts (optional)
- throttle body adaptor kit
- electrical parts needed to extend your CAS wiring
If you're using a stock intake or don't want to swap thermostat necks, the hose splice will make your life a lot easier.
For more information on how to do a 1.8 conversion, our instructions will give you lots of specifics. Please read the instructions prior to buying used parts for your swap to be sure you get the right parts for your purposes and to ensure they'll work together.
Your 1.6 computer won't run the EGR on your new 1.8 engine, so you can either leave the plumbing in place or remove it (and block it off on your own). If you do the former, the EGR will be sealed up and the engine will function normally, but you'll have some extra (and non-functional) hardware. Bear in mind that you'll need to retain both the EGR valve and the EGR pipe. We no longer offer anything to block the EGR as those parts are federally illegal.
The coil bracket is not compatible with VVT engines.
Be aware that two holes need to be drilled in the stock intake manifold in order to mount the throttle body adapter plate.
If you use an NB intake manifold (which moves the throttle body closer to the valve cover) and a 1.6 auto TPS (which is much thicker than the manual version), you'll find hard interference between the TPS and the valve cover. This may or may not be solvable, depending on how aggressive you're willing to get with modifications. This is a pretty rare combination of parts to need.
Note that the NB throttle cable adapter will need to be clearanced slightly if you're using a square top manifold.
Also note that this is intended to put a 1994-05 1.8 engine into a 1990-93 chassis (which all came with 1.6 engines originally). This is not to put a 1.8 engine into a post-94 1.6 (non-US) car. Details vary with that swap, but you likely won't need many of the parts included with this kit.
Instructions
Shipping
What does it fit?
Fits: 1990, 1991, 1992, 1993
Emissions
Not legal in California.
Warranty
1 year
SKU
Worked great
Everything had to be customized to work correctly.
This is really surprising, as we've been selling this kit for decades (literally) and the vast majority of people have been very pleased. We talked to this customer, and the issue was that two holes had to be drilled in the stock intake manifold to mount the throttle body adapter plate (the other parts were fine). This is part of the normal installation process, and is specified in the listing for the plate, but we neglected to specify that here. We're sorry about the confusion, we'll get that description updated to avoid this surprise in the future.
I'm 17 and blew the motor in my 1991, I'm very new to working on cars but because of this kit it made it very simple and online instructions made it very easy to adapt stuff over that i didn't know was possible. the fabrication was perfect and had almost everything I needed. 10/10 kit but the instructions and tips that came with the kit are what made it easy for someone new like me.
This made my swap so incredibly simple. I had never done anything of this magnitude before and I had no trouble at all. This review doesn't allow me to add photos, but it looks completely OEM when installed. I'm about to help a friend complete the same conversion on his car, and this was the first thing I suggested he buy.
I used this kit to put a '97 engine into my 1990 and it's going strong after a couple years of street, track and autocross. Definitely would buy again.
